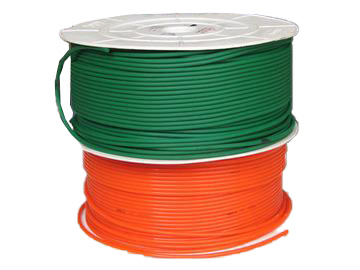

Uyang Belt Polyurethane Transmission drive belt PU Round Belt

PU round belt could be Smooth surface and Rough Surface. and color could be Orange, Green, or customized colors; And they could be suitable for the conveyor applications and most other light to medium duty applications. You can join the ends to create a custom belt by simply melting the tips of the material and sticking them evenly to one another until they cool.

Product characteristics

Products Description

Uyang Belt Polyurethane Transmission drive belt PU Round Belt

PU round belt could be Smooth surface and Rough Surface. and color could be Orange, Green, or customized colors; And they could be suitable for the conveyor applications and most other light to medium duty applications. You can join the ends to create a custom belt by simply melting the tips of the material and sticking them evenly to one another until they cool.In addition , we also can supply a set of the connecting tools & Accessories to you , it ' s include to clamp , the Electric lon and Knife .  Connecting methods is butt joint and overlap joint .

Advantage:
1. Polyurethane Round belt, also known as PU round belt mainly high quality PU particles as raw material which is produced after purification processing precision machinery science has a very high resistance to tension tensile strength
2. This Polyurethane round belt could be rough surface,Wear resistance and impact resistance
3. Easy to welding, easy installation, long service life
4. It can replace traditional rubber products such as glass fiber insulation materials wood5.  Used for drive transmission in packaging machine, printing machine, spinning machine, drive motor, porcelain brick etc

How to use?
The method of joining the ends of the belt:
Step1: To be heated with an alcohol lamp until it is hot enough to melt the end of the belting.
Step2: Join the ends together until they cool.
Step3: Trim off the extra material around the joint until the joint is the same diameter as the belt.

Dia (mm)	Least Radius of Gyration(mm)	Stretching rate (%)	Maximum tensile rate (kg)	Hardness	length (M/ roll)
2mm	20	1.5%-3 %	0.3	85 - 95	400
2.5mm	22	1.5%-3 %	0.4	85 - 95	400
3mm	25	1.5%-3 %	0.7	85 - 95	400
3.5mm	30	1.5%-3 %	0.95	85 - 95	400
4mm	35	1.5%-3 %	1.2	85 - 95	200
5mm	40	1.5%-3 %	2.0	85 - 95	100
6mm	50	1.5%-3 %	3.2	85 - 95	100
7mm	55	1.5%-3 %	4.1	85 - 95	100
8mm	65	1.5%-3 %	5.0	85 - 95	100
9mm	75	1.5%-3 %	6.8	85 - 95	50
10mm	75	1.5%-3 %	7.7	85 - 95	50
12mm	100	1.5%-3 %	12.2	85 - 95	30
15mm	120	1.5%-3 %	17.7	85 - 95	30
18mm	145	1.5%-3 %	25.4	85 - 95	30
20mm	160	1.5%-3 %	31.3	85 - 95	30
