Conveyor and processing belts work in complex and diverse processes. Reliability of the joining and the possibility to equip them with high-quality accessories brings added value and ensures that the belt can deliver the best process support there is.
UYANG BELT developed a broad portfolio of belt accessories and conveyor components to enhance the performance our belts and their customization fitting precisely to your process needs. We also provide a comprehensive range of equipment which covers the requirements of standard or specialized in-house fabrication, as well as on-site installations of belts and tapes.
Product characteristics
Profiles and cleats
Depending on the type of product processed, line optimization, and conveying process efficiency may require a high belt customization degree. The UYANG BELT range of belt accessories, including tracking guides, cleats, sidewalls, and flat profiles for edge sealing, allows you to find the right solution for your requirements.

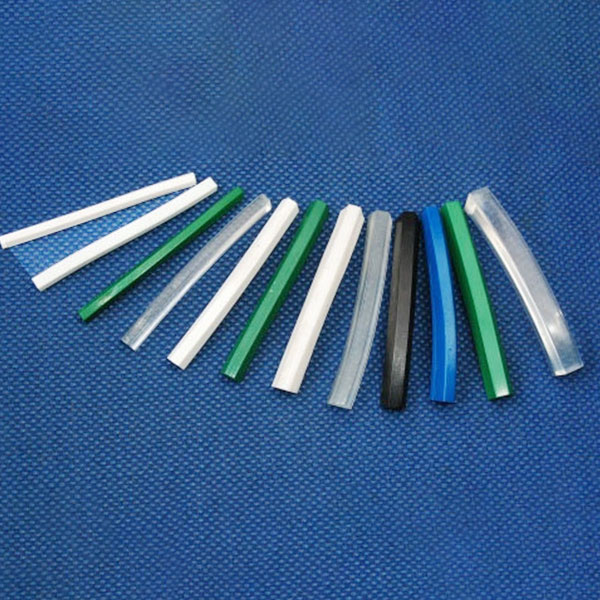

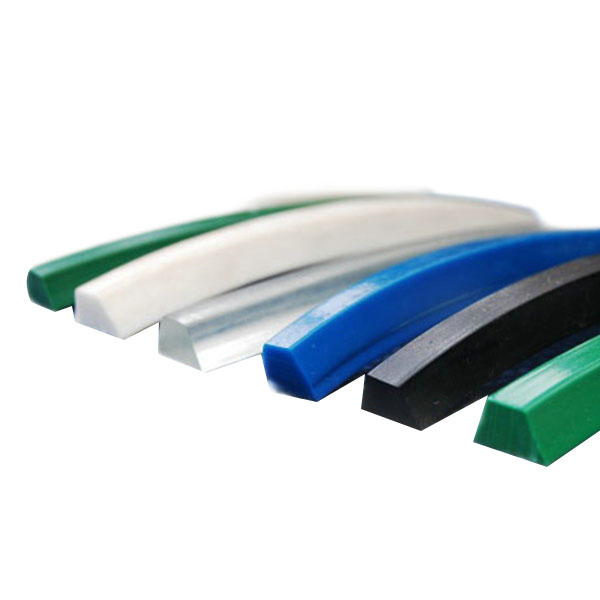

V-Guides:

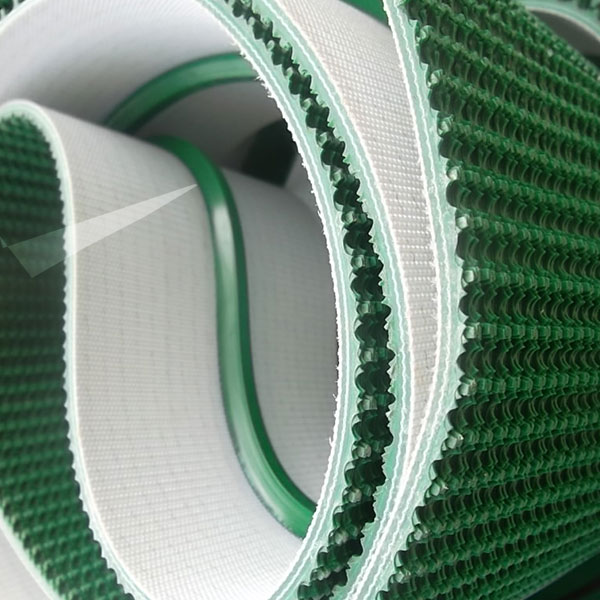

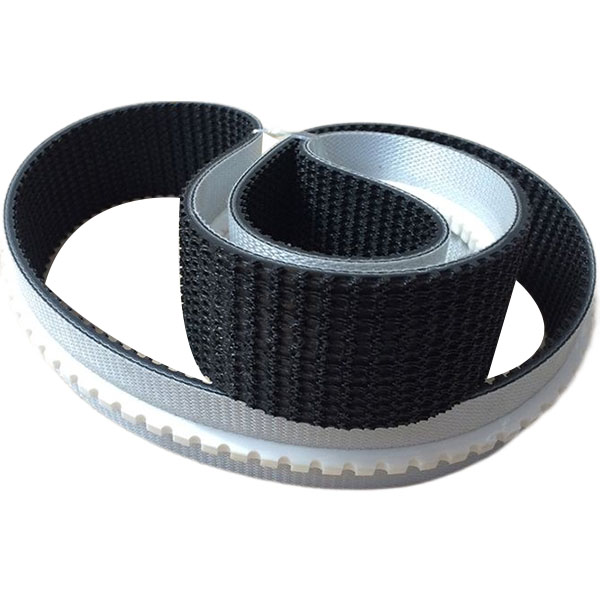

V-Guides are placed on the running side of conveyor belts or on the tooth side of timing belts. This provides true belt tracking in applications where long narrow belts are used for conveying products. Tracking guides are also common where products are side loaded, which could otherwise cause a lateral shift in the belt’s direction of travel. The tracking guides can be notched or deep notched to provide maximum flexibility around the pulleys;
Basic Technical Data | ||||||||
Type | V-Guide | |||||||
Surface | Solid and notched options | |||||||
Material | PVC / PU | |||||||
Width of Bottom (mm) | 6 mm, 8mm, 10mm,13mm, 17mm, 22mm, 30mm | |||||||

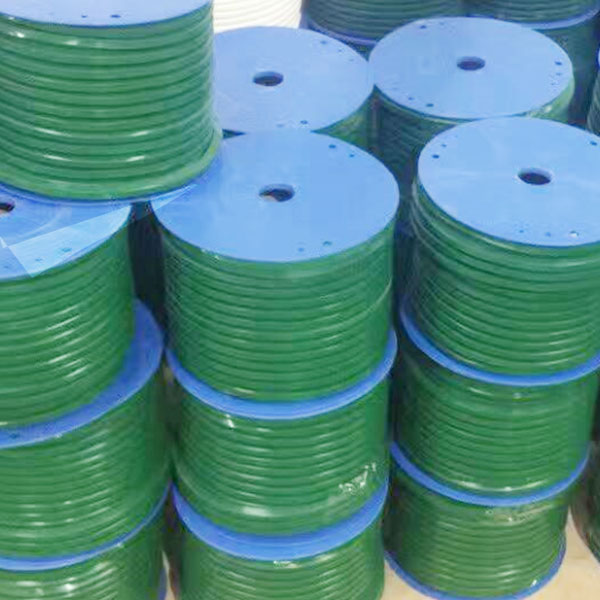

Max Length | 400M | |||||||
Color | white/green/black | |||||||
Working Tem. “C” | —15/+80 | |||||||
Detailed Technical Data | ||||||||

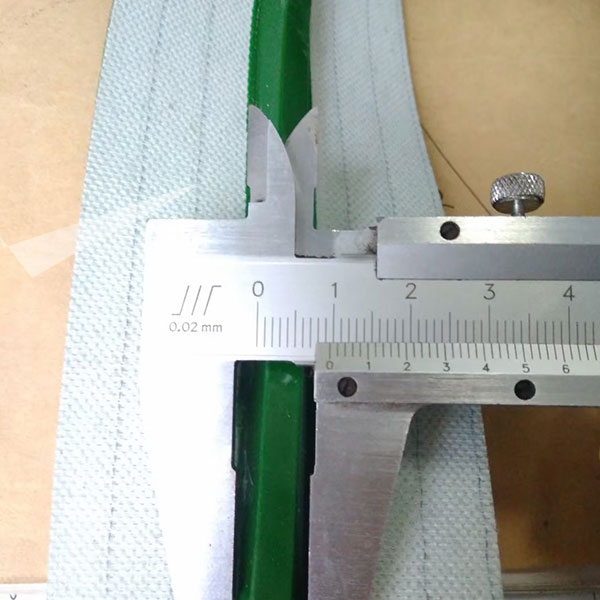

Specs | Width of Bottom | Width of Upper | Height | color | Material | Hardness | Min Pulley Dia | |
BxH(mm) | (mm) | (mm) | (mm) | Shore(A) | Front Side | back side | ||
K 6x4 | 6 | 3 | 4 | white/green/black | PVC | 60 | 40 | 30 |
K 8x5 | 8 | 4 | 5 | white/green/black | PVC | 60 | 50 | 40 |
K 10x6 | 10 | 5 | 6 | white/green/black | PVC | 60 | 70 | 60 |
K 13x8 | 13 | 6 | 8 | white/green/black | PVC | 60 | 110 | 80 |
K 17x11 | 17 | 8 | 11 | white/green/black | PVC | 60 | 180 | 120 |
