Hot products

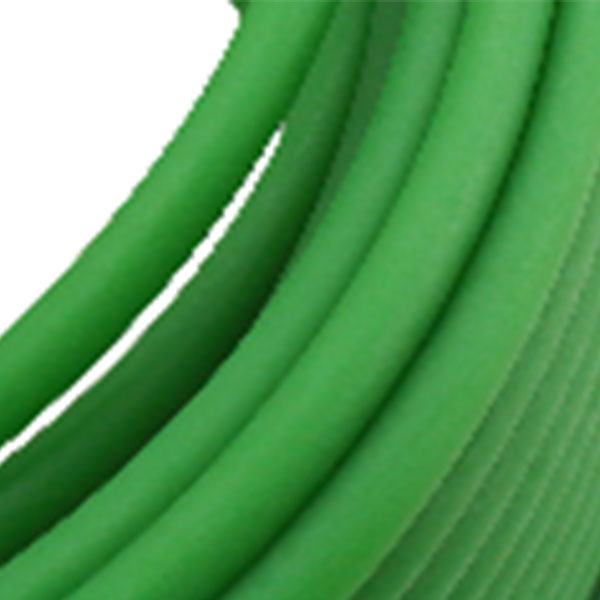

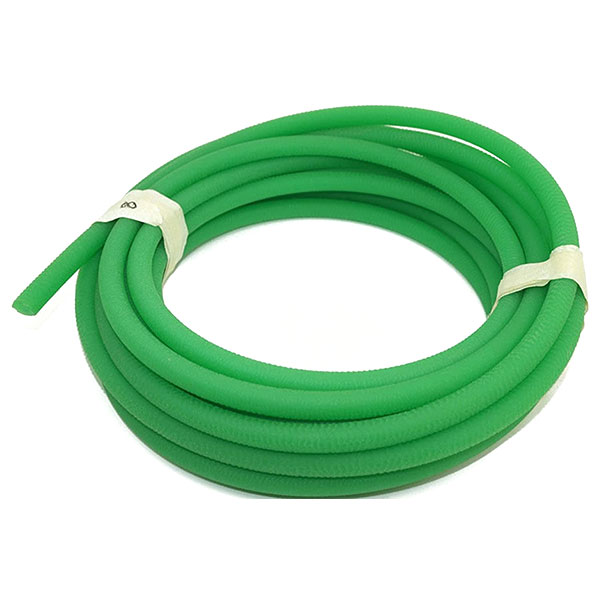

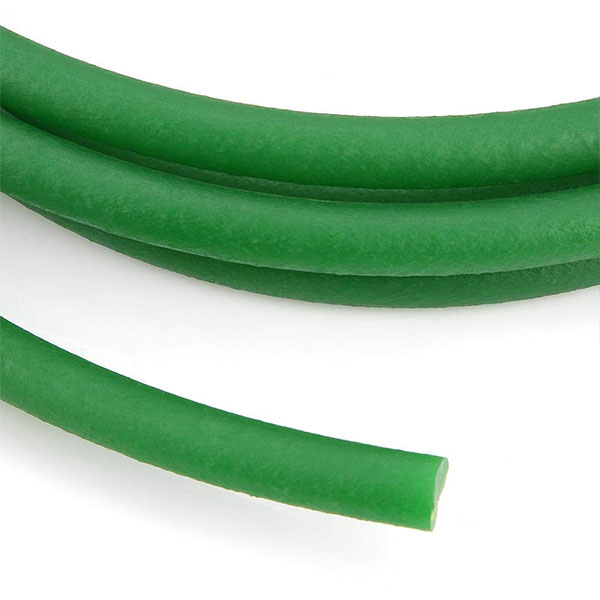

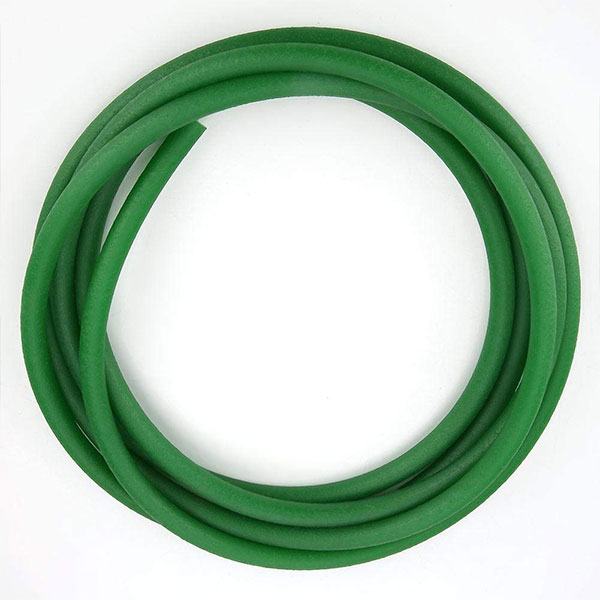

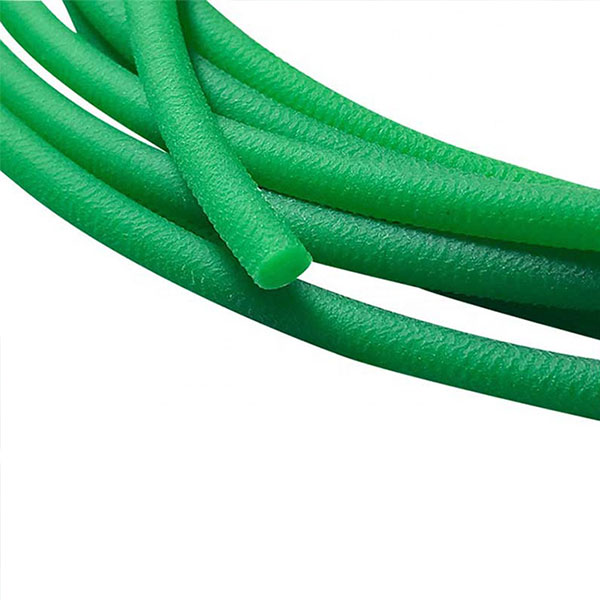

Pu round belt green
PU Round belt
Descriptions:

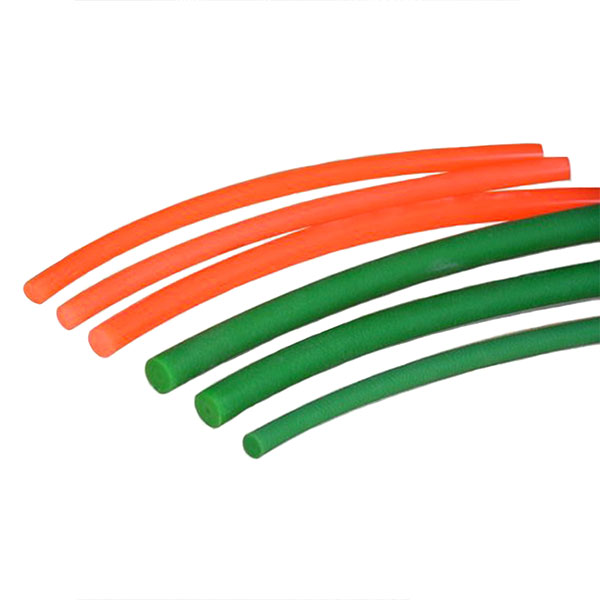

PU round belt could be Smooth surface and Rough Surface.and color could be Orange, Green, or customzied colors; And they could be suitable for the conveyor applications and most other light to medium duty applications. You can join the ends to create a custom belt by simply melting the tips of the material and sticking them evenly to one another until they cool.
In addition , we also can supply a set of the connecting tools & Accessories to you , it ' s include to clamp , the Electric lon and Knife . Connecting methods is butt joint and overlap joint .
Product characteristics
Advantage:
1. Polyurethane Round belt, also known as PU round belt mainly high quality PU particles as raw material which is produced after purification processing precision machinery science has a very high resistance to tension tensile strength
2. This Polyurethane round belt could be rough surface,Wear resistance and impact resistance
3. Easy to welding, easy installation, long service life
4. It can replace traditional rubber products such as glass fiber insulation materials wood
5. Used for drive transmission in packaging machine, printing machine, spinning machine, drive motor, porcelain brick etc
How to use?
The method of joining the ends of the belt:
Step1: To be heated with an alcohol lamp until it is hot enough to melt the end of the belting.
Step2: Join the ends together until they cool.
Step3: Trim off the extra material around the joint until the joint is the same diameter as the belt.
PU Round Belt Technical Parameters | |||||||
Diameter | Least Radius of Gyration | Stretching rate | Maximum tensile rate | Hardness | length per roll | ||
DIA (mm) | Inches | mm | % | kg | Lbs | Shore(A) | M/Roll |
2mm | 0.79 | 20 | 1.5 - 3 % | 0.3 | 0.7 | 85 - 95 | 400 |
2.5mm | 0.87 | 22 | 1.5 - 3 % | 0.4 | 0.9 | 85 - 95 | 400 |
3mm | 0.98 | 25 | 1.5 - 3 % | 0.7 | 1.6 | 85 - 95 | 400 |
3.5mm | 1.18 | 30 | 1.5 - 3 % | 0.95 | 2.1 | 85 - 95 | 400 |
4mm | 1.38 | 35 | 1.5 - 3 % | 1.2 | 2.7 | 85 - 95 | 200 |
5mm | 1.57 | 40 | 1.5 - 3 % | 2.0 | 4.3 | 85 - 95 | 100 |
6mm | 1.97 | 50 | 1.5 - 3 % | 3.2 | 7.0 | 85 - 95 | 100 |
7mm | 2.17 | 55 | 1.5 - 3 % | 4.1 | 9.0 | 85 - 95 | 100 |
8mm | 2.56 | 65 | 1.5 - 3 % | 5.0 | 11.0 | 85 - 95 | 100 |
9mm | 2.95 | 75 | 1.5 - 3 % | 6.8 | 15.0 | 85 - 95 | 50 |
10mm | 2.95 | 75 | 1.5 - 3 % | 7.7 | 17.0 | 85 - 95 | 50 |
12mm | 3.94 | 100 | 1.5 - 3 % | 12.2 | 27.0 | 85 - 95 | 30 |
15mm | 4.72 | 120 | 1.5 - 3 % | 17.7 | 39.0 | 85 - 95 | 30 |
18mm | 5.71 | 145 | 1.5 - 3 % | 25.4 | 56.0 | 85 - 95 | 30 |
20mm | 6.30 | 160 | 1.5 - 3 % | 31.3 | 69.0 | 85 - 95 | 30 |
FAQ
Q1. Can I have a sample order for PU round belt?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
1) 2--3 days for sample
2) 20--30 days for mass production. If urgent,we have green channel.
Q3. Do you have any MOQ limit for PU round belt order?
Low MOQ, 1pc for sample checking is available
Q4. Is it OK to print my logo on PU round belt product?
Yes. Please inform us your logo or design before mass production
Q5.what's the advantage of our company?
A:We have our own laboratory in the company,so the clients can take some samples to perform exper-iment on the spot.And our technician will provide the best advice and choice for our clients.
Q6:How about your company strength?
A:We choose to cooperate with the best raw material suppliers from both inside and outside of China.So our products have huge advantage in terms of variety.We can develop higher quality,better pricing conveyor belts under customer's strict usage conditions.Also,we provide customers with specifications of our products to better support their conveying machinery.
