PVK150 PVK Solid Woven Conveyor Belt For Logistics Logistics And Post, airport.-PVK Conveyor Belt-Tianjin Uyang Belting Co., Ltd

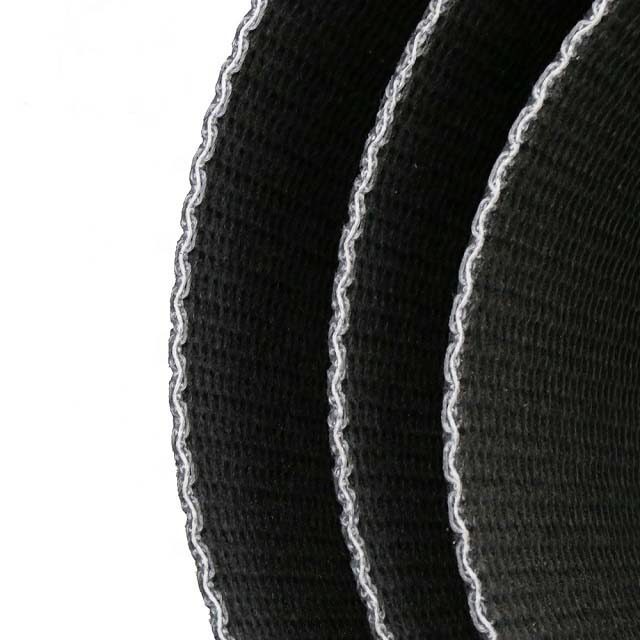

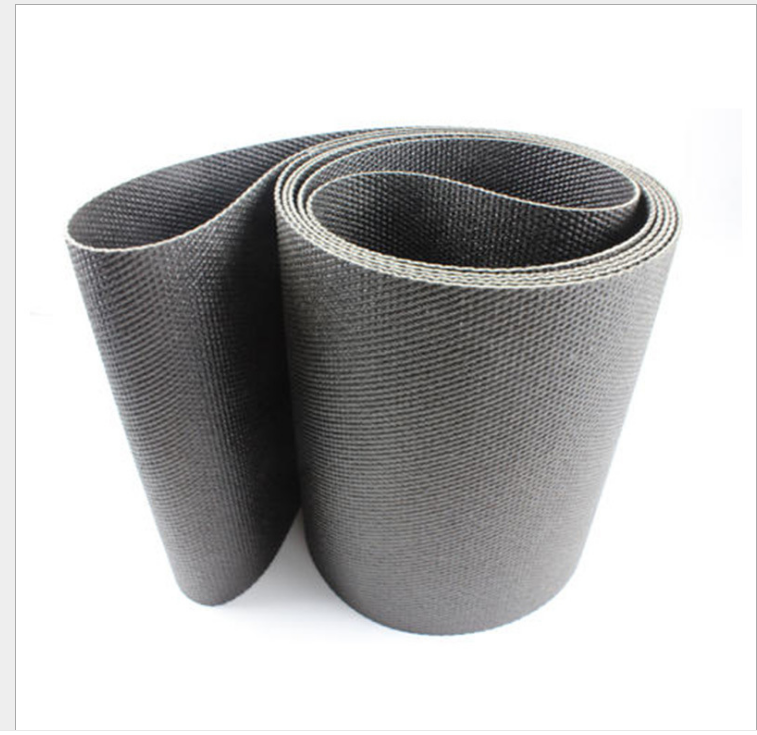

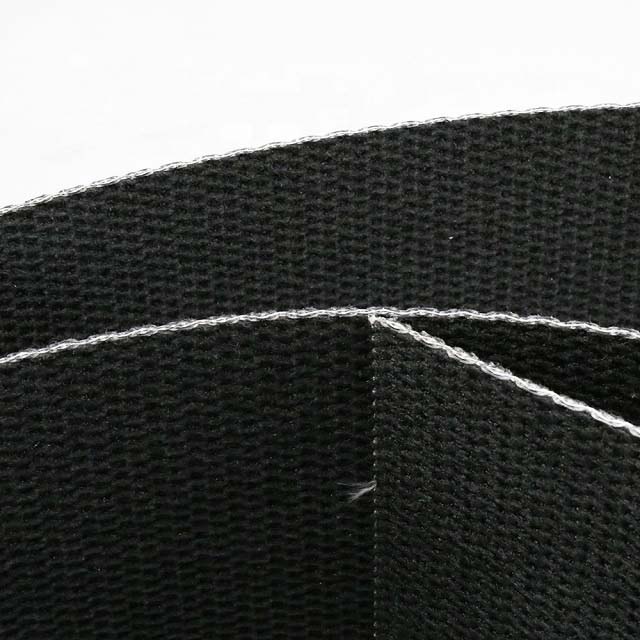

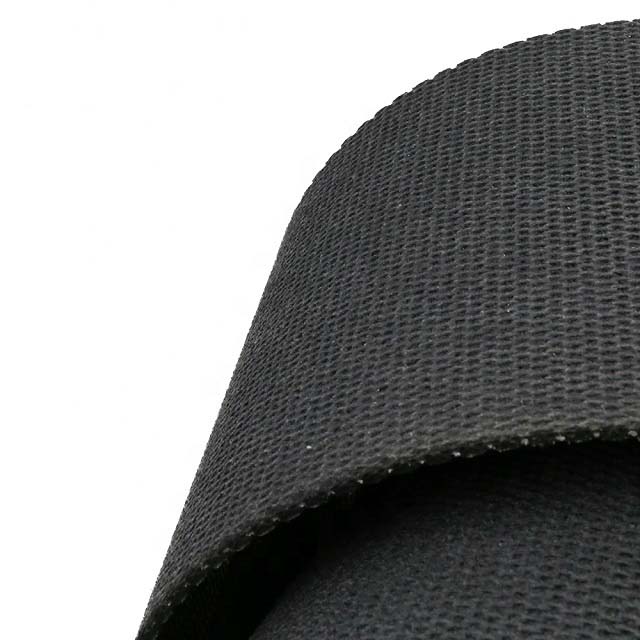

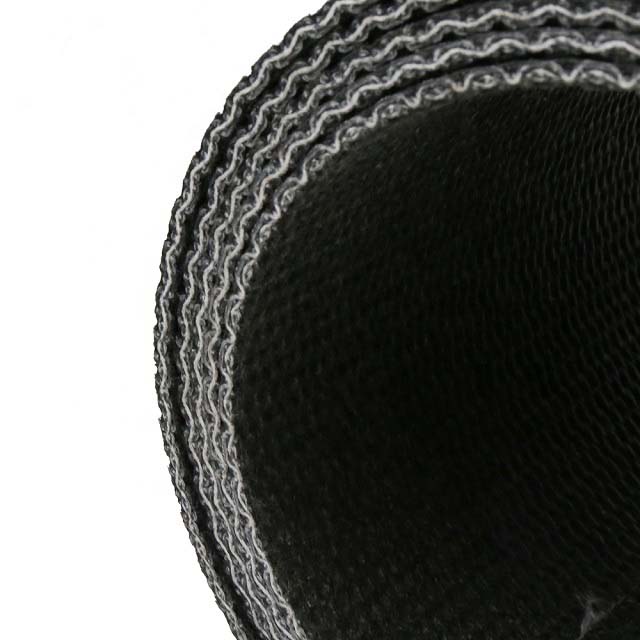

PVK150 PVK Solid Woven Conveyor Belt For Logistics Logistics And Post, airport.

PVK conveyor belt is a solid woven core fabric with PVK coating on the suface. It is a rubber synthetic polymer modified products. It has higher wear resistance and cutting resistance compared with PVC conveyor belts. Its service life is three to four time longer than ordinary PVC products. Widely used in the logistics industry, sorting system, airport, express delivery etc.

Product characteristics

product	color	working temperature	Weight(kg/m2)	Breaklngond N/mm	Working losd at 1% elong atio N/mm	Minimum Pulley Dia/mm	Hardness	Structure	Application
3.0pvk	Black	-10/+80	3	≥200	≥20	70	85	One pvk layer, one fabrics layer	Telescopic machine
3.0pvk	Black	-10/+80	3	≥200	≥20	70	85	Two pvk layers	Logistics sorting with small rolls
3.6pvk	Black	-10/+80	4	≥220	≥23	80	85	Two pvk layers	Logistics sorting
4.3pvk	Black	-10/+80	4.2	≥260	≥25	100	85	Two pvk layers	Logistics sorting

The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.
