Textile Printing Blanket PU conveyor belt

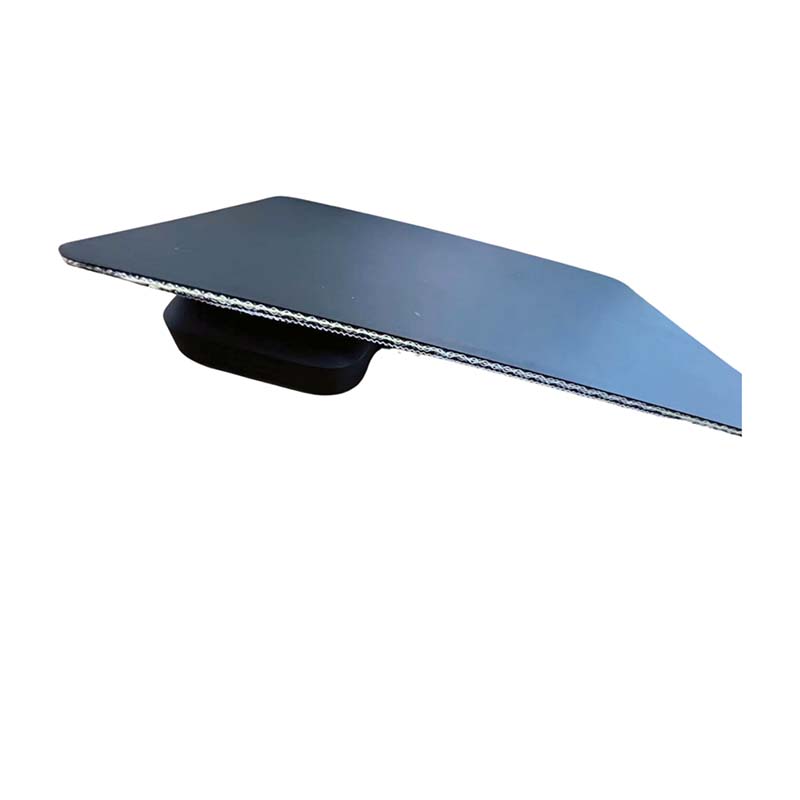

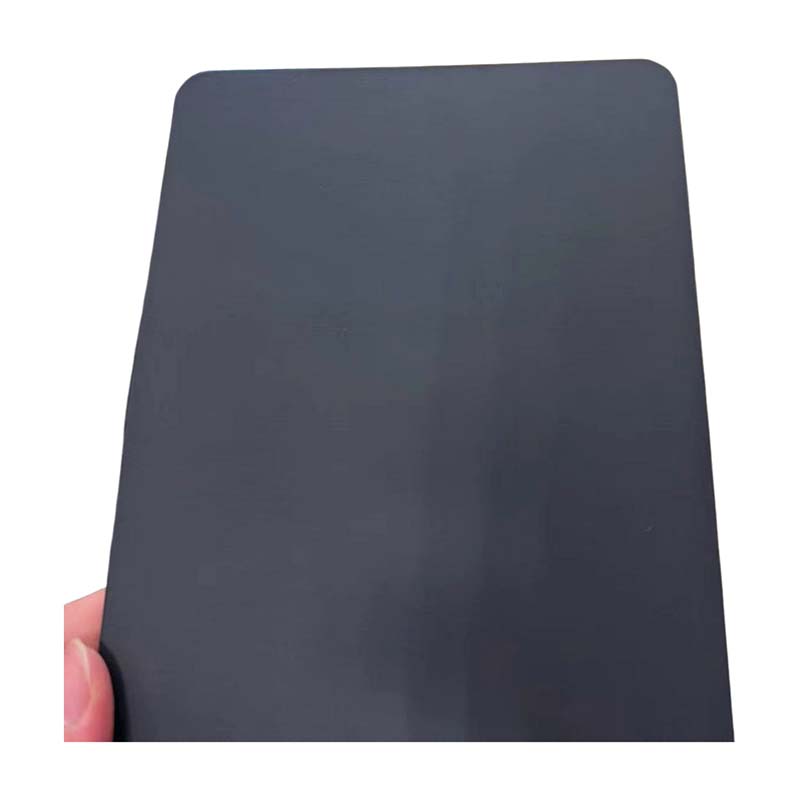

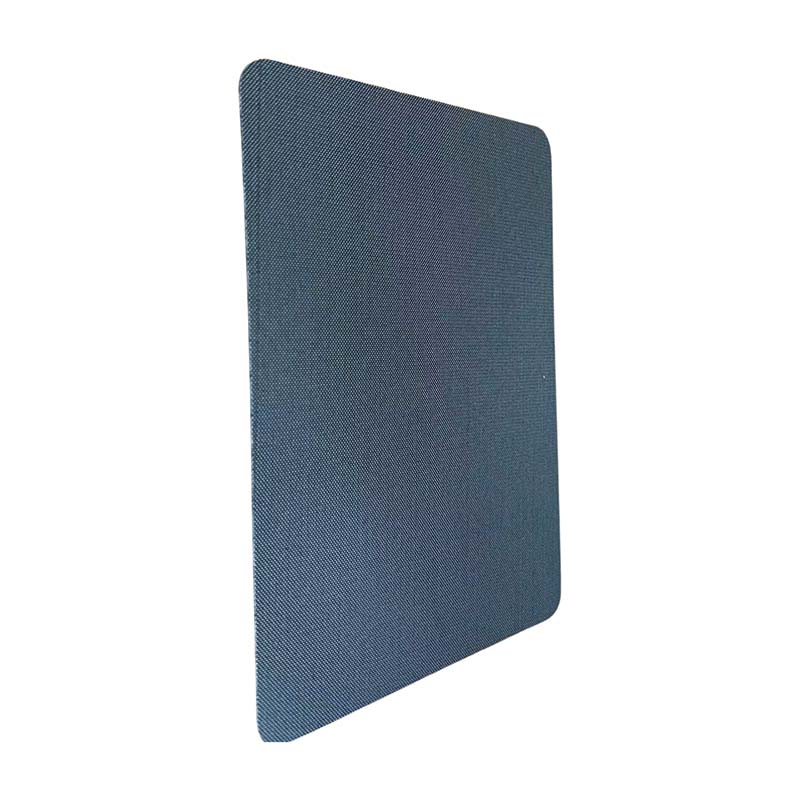

Product Name: Textile printing blankets
TPU-based printing blanket, also called textile printing blankets, made from high-strength aramid materials ; Digital textile printing in terms of variety and depth of colors can only be realized through the reliable and absolutely precise positioning of every single drop of ink.
UYANG BELTING’s expert knowledge and close collaboration with OEMs has resulted in a brand-new generation of textile printing blankets that ensure high printing accuracy, quick installation, and excellent ease of use.
Thickness will be 2.1 to 2.65 mm;
Max Width: 3400mm;

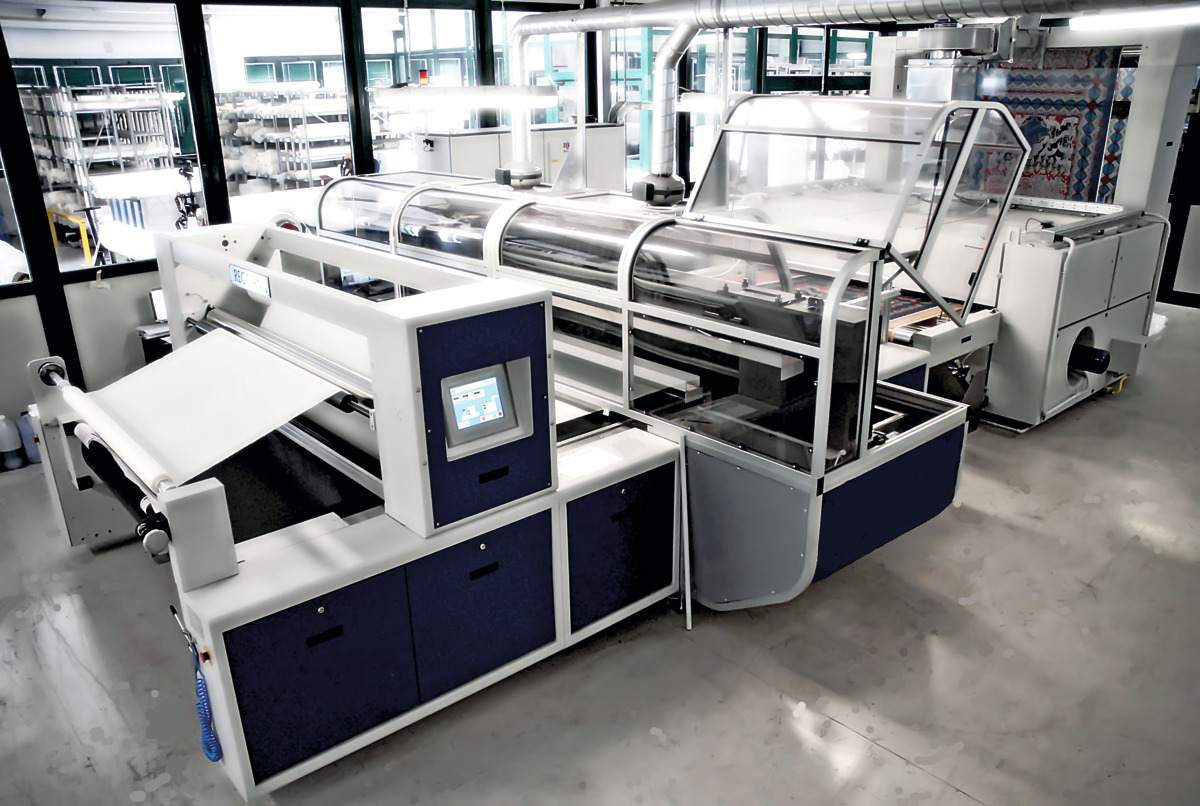

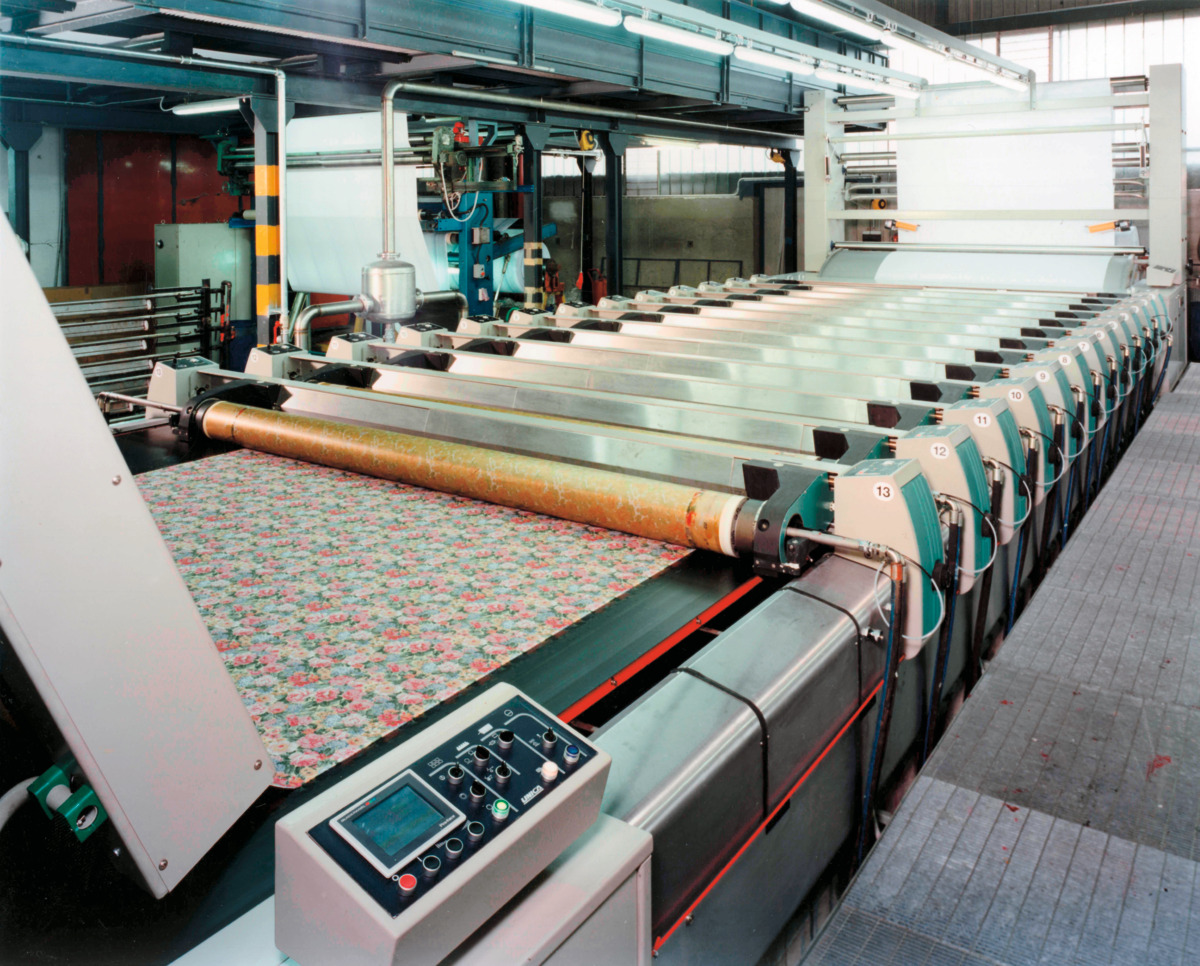

Application: Printing Blanket used for over all printing machine ;
Textile printing blankets ensure high printing accuracy, quick installation, and excellent ease of use.
Product characteristics
Brand | Uyang belt | |
Thickness (mm) | 2.1 ~ 2.65 (customized) | |
Color | Black (customized) | |
Weight (kg/m2) | 2.8 ~ 3.6 | |
Effective pull at 1% elongation (N/mm) | 55 N/mm | |
Temperature range (℃) | -20 / +80 | |
Characteristic | Low elongation, dimensionally stable and low-noise, antistatic and with cleanly cut edges, light and flexible etc. |
product | Plies | thickness | working temperature | Weight | Breaklngond N/mm | Working losd at 1% elong atio N/mm | Surface | Bottom | Minimum Pulley Dia/mm |
TPU-based printing blanket | 2 plies | 2.6 mm | -20℃ to+80℃ | 3.1 | ≥ 50 | 55 | PU | Polyester monofilament impregnated PU | 80 |
TPU-based printing blanket | 3 plies | 2.6 mm | -20℃ to+80℃ | 3.1 | ≥ 100 | 55
| PU | Polyester monofilament impregnated PU | 80 |
The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.
