Sidewalls
Conveyor and processing belts work in complex and diverse processes. Reliability of the joining and the possibility to equip them with high-quality accessories brings added value and ensures that the belt can deliver the best process support there is.
UYANG BELT developed a broad portfolio of belt accessories and conveyor components to enhance the performance our belts and their customization fitting precisely to your process needs. We also provide a comprehensive range of equipment which covers the requirements of standard or specialized in-house fabrication, as well as on-site installations of belts and tapes.
Product characteristics
Profiles and cleats
Depending on the type of product processed, line optimization, and conveying process efficiency may require a high belt customization degree. The UYANG BELT range of belt accessories, including tracking guides, cleats, sidewalls, and flat profiles for edge sealing, allows you to find the right solution for your requirements.

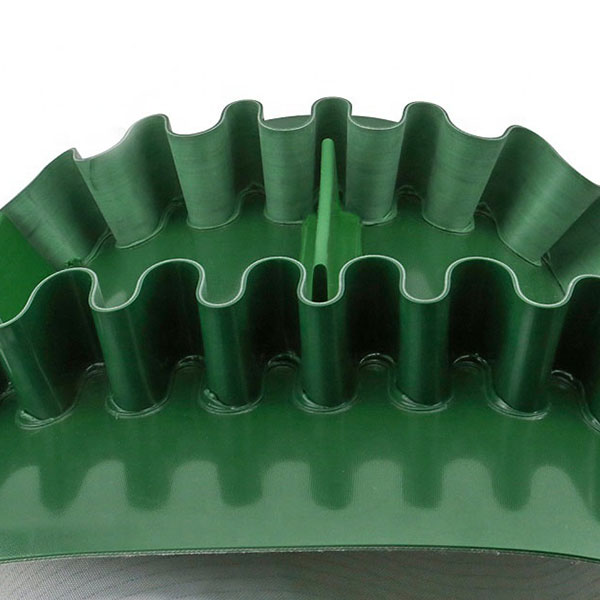

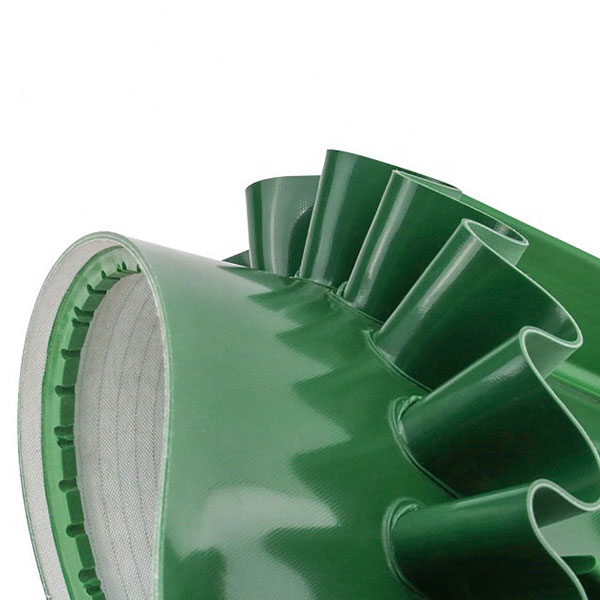

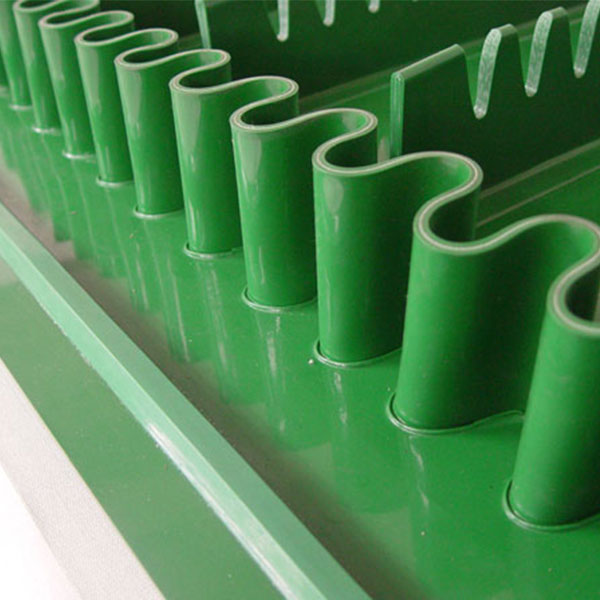

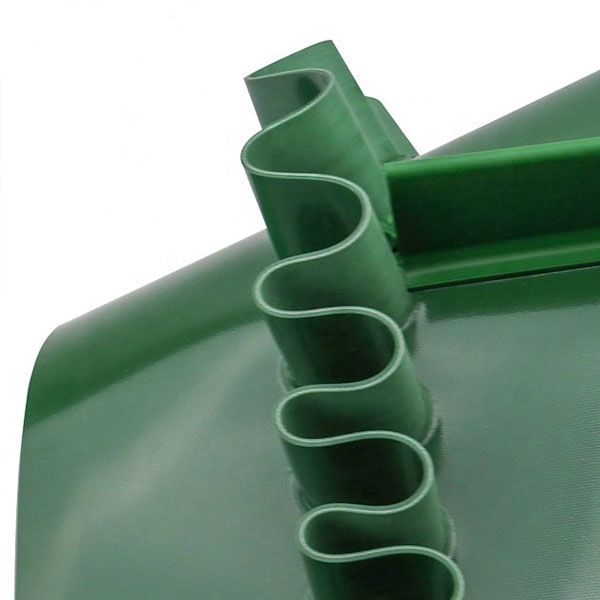

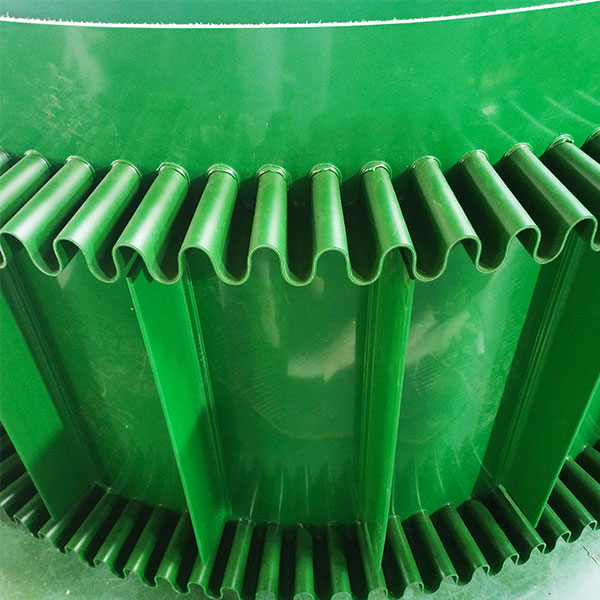

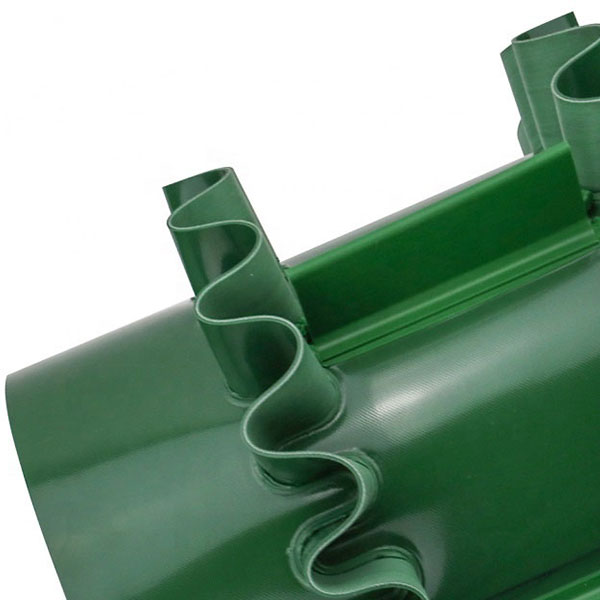

Sidewalls:
Corrugated sidewall profiles support a wide range of applications from food processing to materials handling. Sidewalls can be used with or without cleats and ofer and excellent flexibility and high level of wear resistance to ensure a long service life and outstanding performance. Sidewalls are mostly used to contain bulk goods;
Sidewall Technical Data | ||||||||
Type | Height | Corrugation Width | Color | Material | Hardness | Min Pulley Dia | Thickness of Bottom | Thickness |
(mm) | (mm) | (shore(A) | (mm) | (mm) | (mm) | |||
S10 | white/green/black | PVC | 60 | |||||
S20 | 20 | 40 | white/green/black | PVC | 60 | |||
S30 | 30 | 40 | white/green/black | PVC | 60 | 120 | 30-25 | 2.5/5 |
S40 | 40 | 40 | white/green/black | PVC | 60 | 120 | 30-25 | 2.5/5 |
S50 | 50 | 40 | white/green/black | PVC | 60 | 120 | ||
S60 | 60 | 40 | white/green/black | PVC | 60 | 150 | 30-25 | 2.5/5 |
S70 | 70 | 40 | white/green/black | PVC | 60 | 160 | ||
S80 | 80 | 40 | white/green/black | PVC | 60 | 180 | 55-60 | 5 |
S90 | 90 | 40 | white/green/black | PVC | 60 | 200 | ||
S100 | 100 | 40 | white/green/black | PVC | 60 | 220 | 55-60 | 5 |
