  PU Round V Belt Welding Tool Splicing Kit

  This splicing kits are specially used for welding PU round belts, using welding clamp to fix the round belts, and can make high
  temperature welding

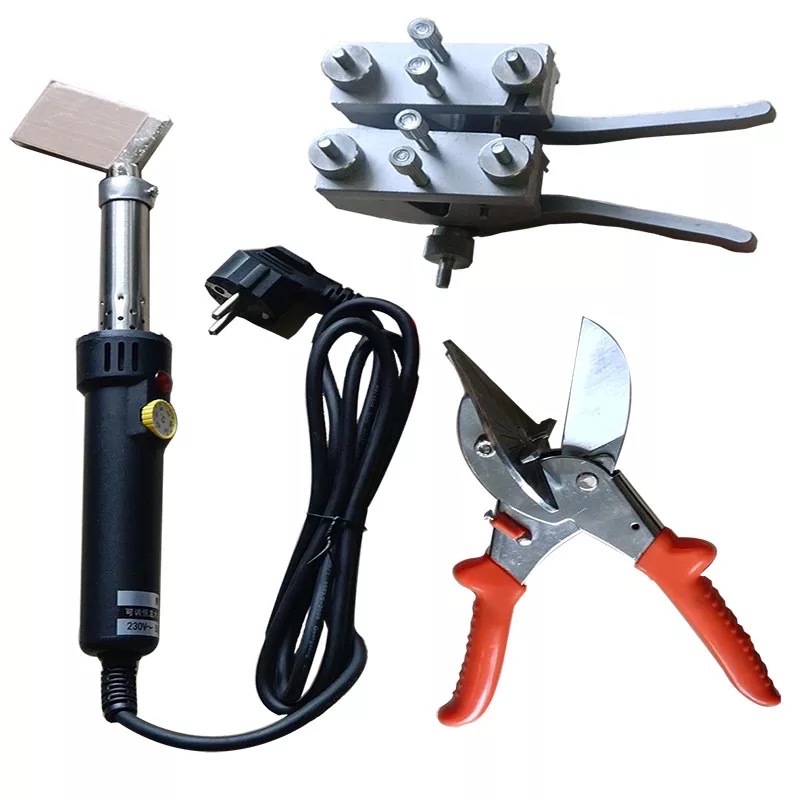

  include following items:
  1.Welder (Soldering Iron)

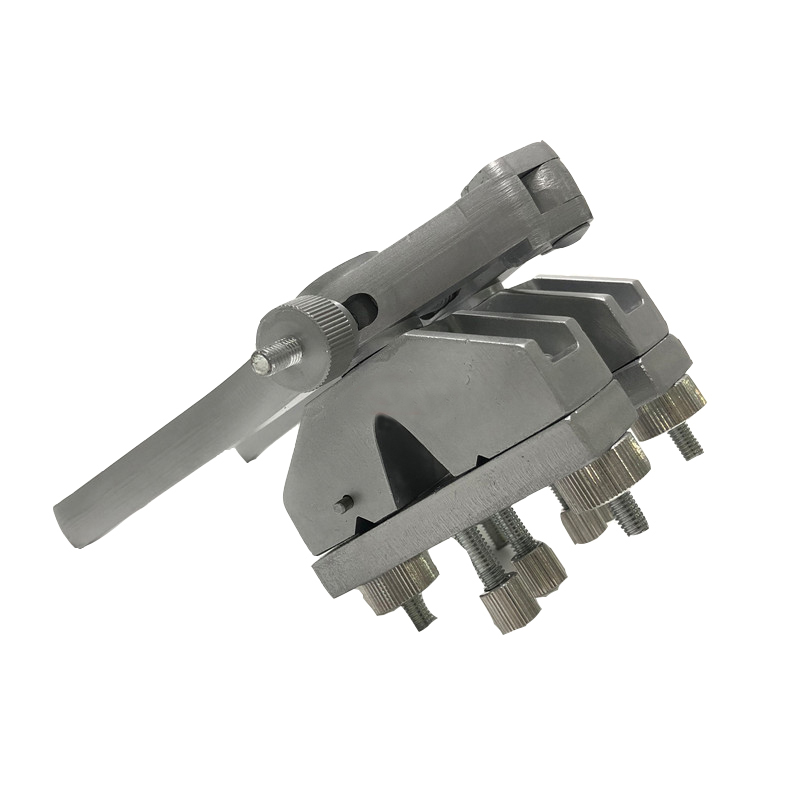

  2.Gripper (Welding Clamp)

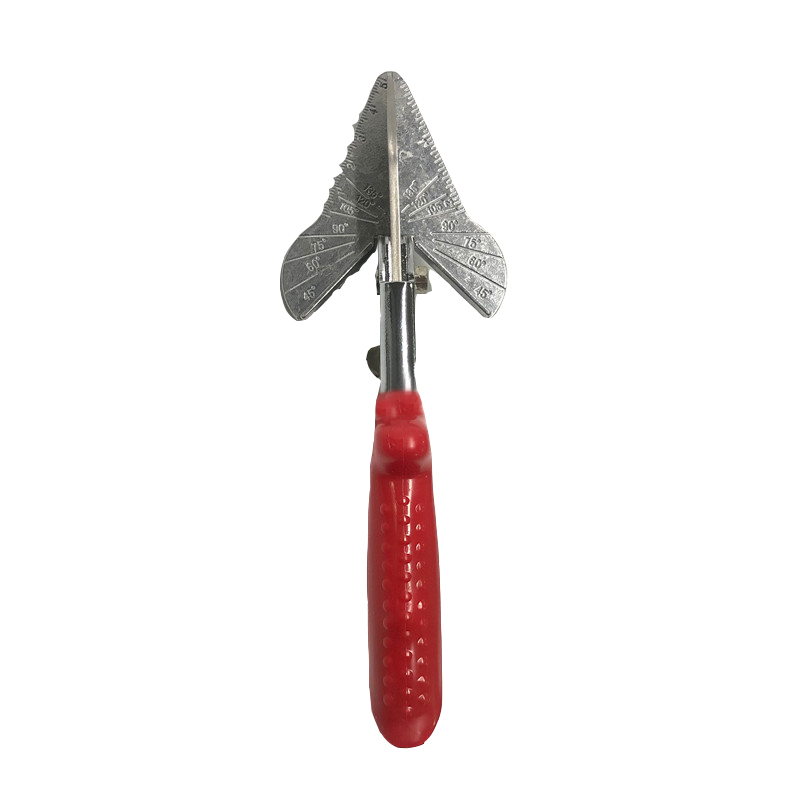

  3.Cutter (Scissors with Skid handle)

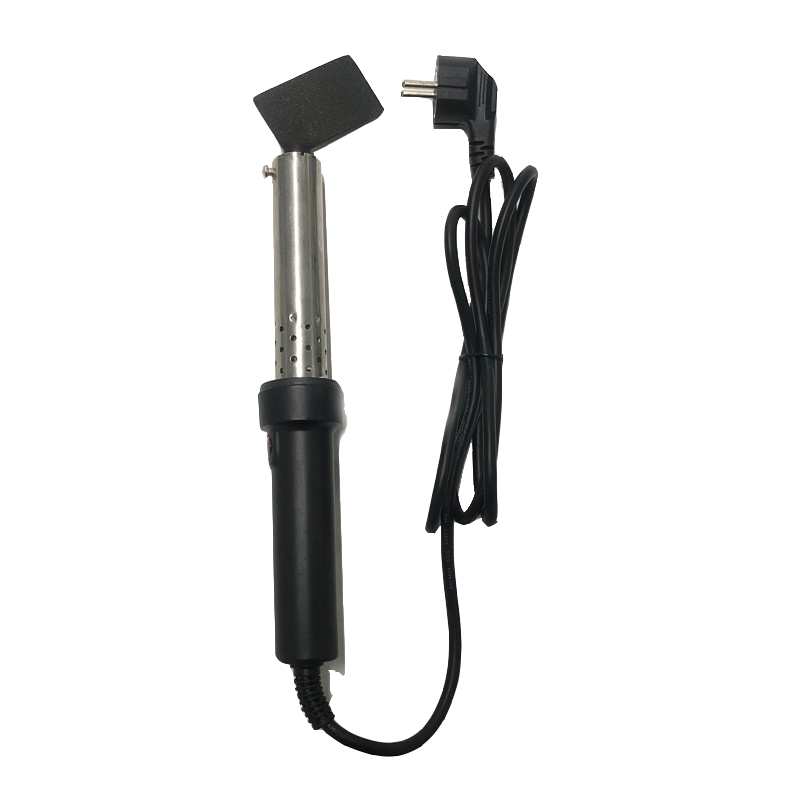

  Welding kit include Soldering Iron with Teflon Coating




Product characteristics

Product Parameters

Equipment With	Welder ( Soldering Iron)	Gripper( Welding Clamp)	Cutter ( Scissors with Skid Handle)
Selection	Teflon Coating	Black	Plastic handle
	Teflon Sticking	Silver	Steel
Description	Constant temperature heating	Aluminum	Vertical Shear
Specification(mm)	340L x 50W x 85H	210*130*110	225*65*60
Weight(kgs)	0.70	0.80	0.40
Application	for all kinds of PU V-belt and Round belt without cord

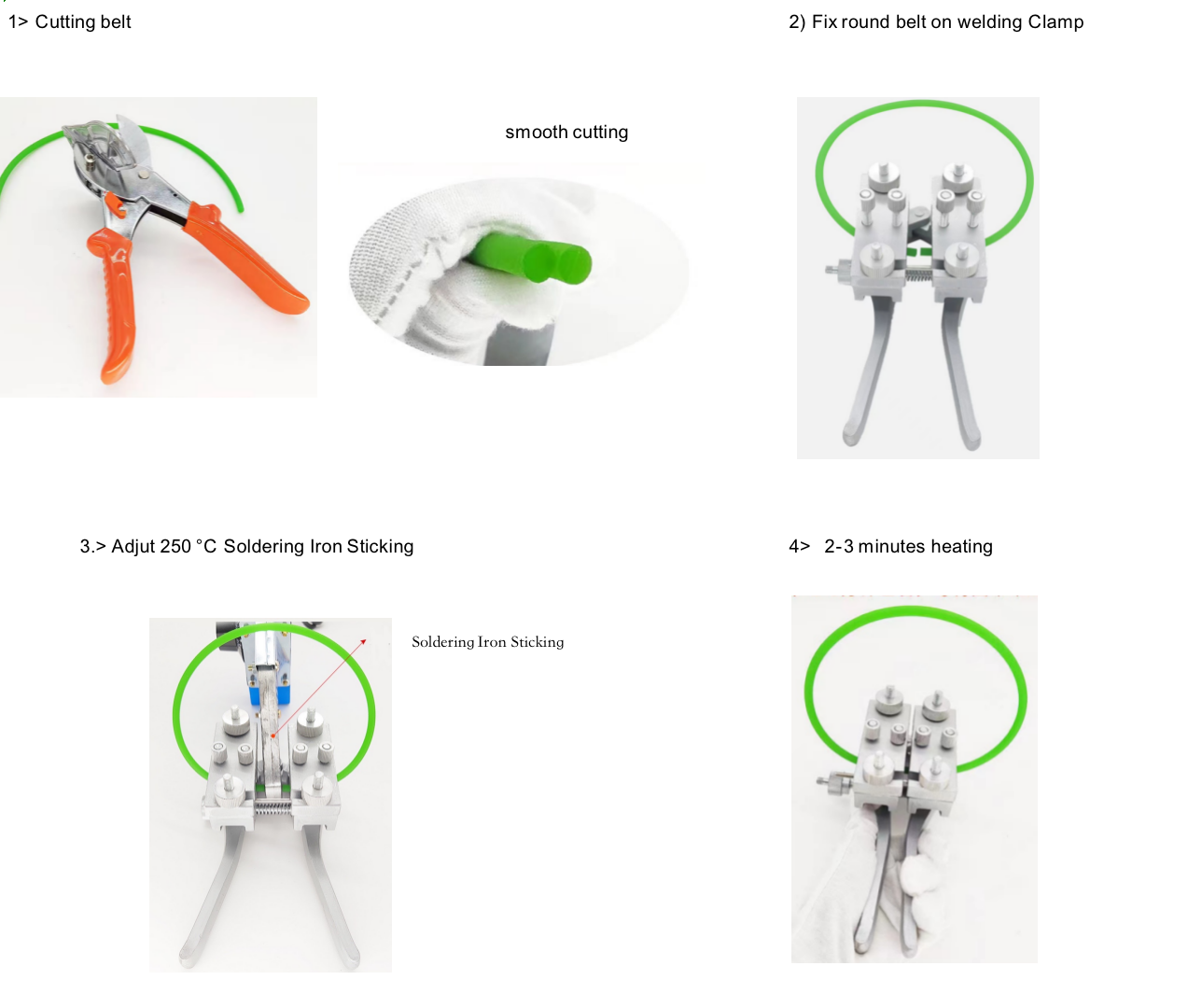

Operating Instruction

PU Round V Belt Welding Tool Splicing Kit
1) Preheating the soldering iron; cutting the belt by the scissor and make sure the transverse incision is smooth
2) Loosen the four big screws of the welding clamp, adjust the height of aluminum plates to put the belt into it.
3) Put the open endless belt into the locating slot (If the belt size is small, adjust the four small screw of clamp to fit it,
preset protruding length on both ends of the belt, make the two end belt match perfectly.
4) Place the soldering iron between the ends of belt, gently tighten the clamp, make both ends completely contact soldering iron.
5) Heating the soldering iron, when the PU are melted approximately 0.5~1mm, whip out the soldering iron, closed the welding clamp by the side screw.
6) After about 3 minutes, take off the belt from the welding clamp.
7) Grinding the surface after made the weld, check if it's finished. if not, please repeat the above steps again.
