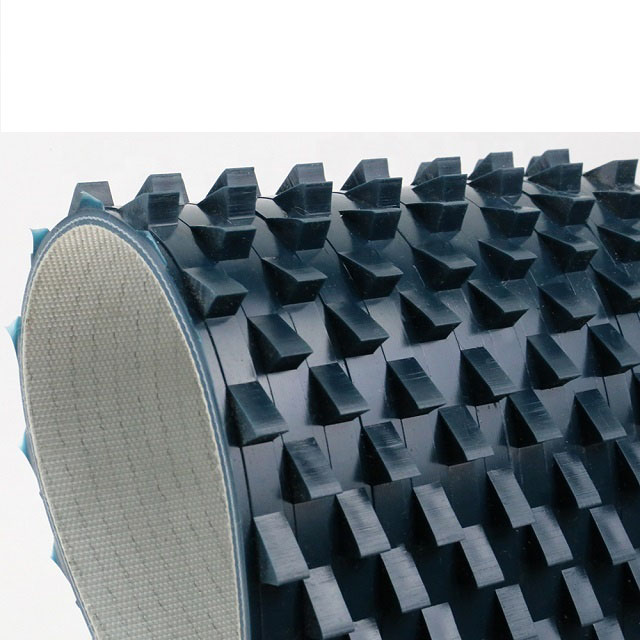

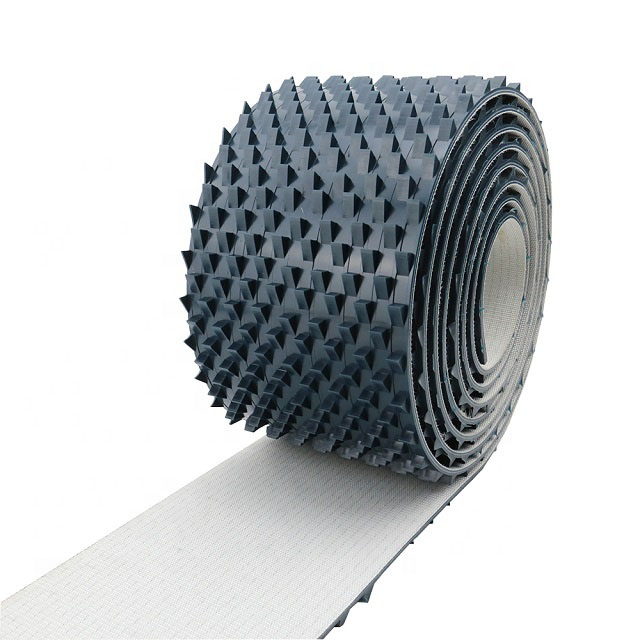

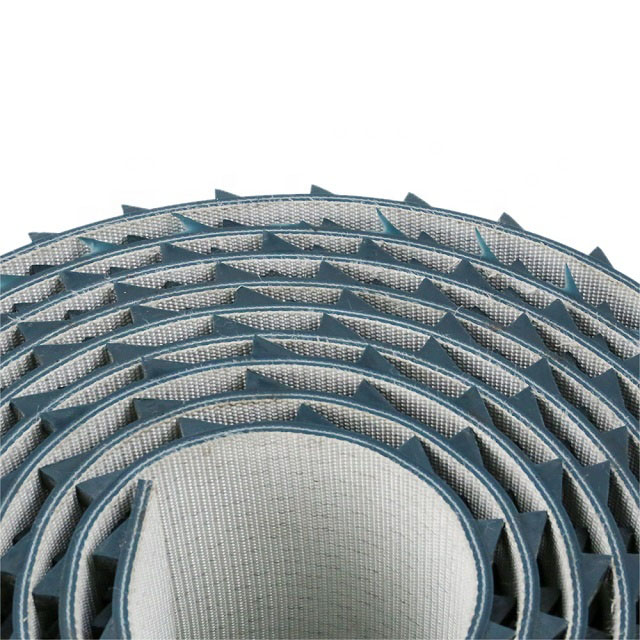

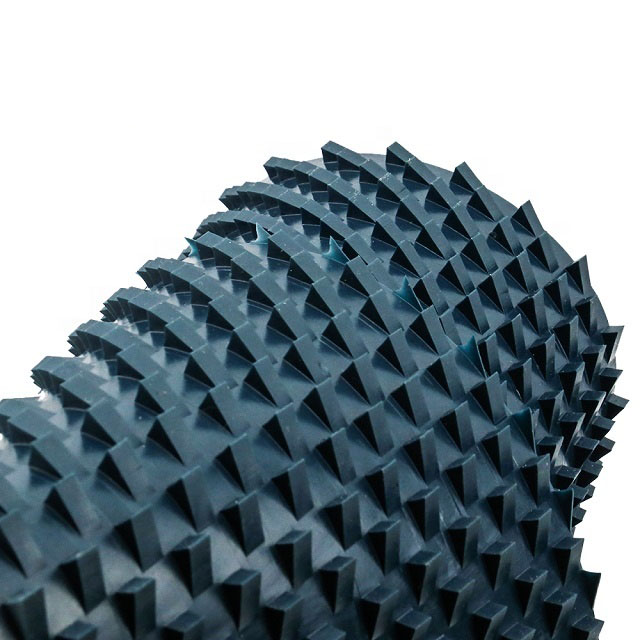

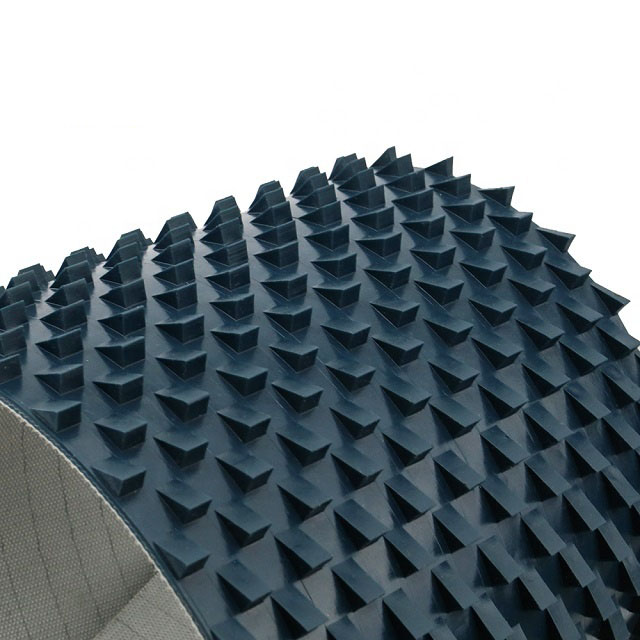

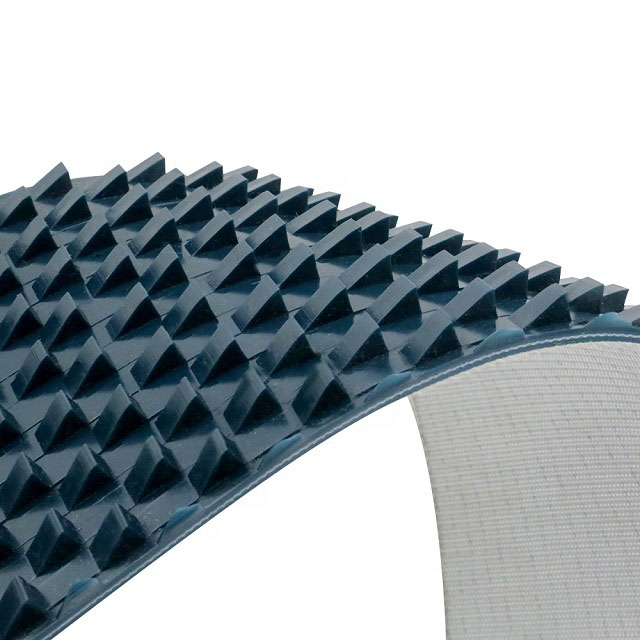

• Tooth Pattern Marble Belt PVC conveyor belt for stone and Ceramics industry

  Marble Belts, also called “Ceramic Polishing Conveyor Belt”, are mainly used in Ceramic Polishing Line, artificial marble,

  synthetic resin board production line, etc.;

   The bottom of Marble belts are reinforced fiber, which have the characteristics of strong impact resistance and wear resistance, high tensile strength, and long service life;

  Then the Marble Belt can be better to meet the using needs , when the stone are in various processing procedures such as

  transportation, polishing, and grinding;




Product characteristics

	Name	Marble belt Tooth Pattern conveyor belt used in Marble processing
	Brand	UYANG BELTING
	Surface	Tooth Pattern( One direction)
	Color	Blue/Green
	Structure	Tooth pattern+PVC+fabrics( 2 fabrics 2 glue/ 4 fabrics 4 glue)
	Thickness	8.5mm / 13.5mm
	Thickness of pattern	5.5mm
	Weight	6.4 kg/M2; 10.74 kg/M2
	Pattern usage	tooth one direction: keep in same direction on machines for the polishing of large marble and granite slabs

High Quality cut Resistant Tooth Pattern Marble Belt conveyor belt supplier for stone and Ceramics industry

Name: Tooth  Marble Belt

Color: Blue/ green, or customized

Structure: 5.5mm thickness of pattern on the surface of the pvc belt;

Pattern explanation:

one direction: keep in same direction on machines for the polishing of large marble and granite slabs

two direction: The two way aligned teeth avoid the slab from moving backwards

Characteristics: cut-resistant, abrasion-resistant, flatness and high breaking strength, ect;

Application:  Ceramics and marble equipment manufacturer;

PVC conveyor belts are made of PVC which is commonly abbreviated PVC and polyester fabric, it's working temperate range is from -10 to 80 degrees, with good lateral stability, with special functions such as cold, heat, abrasion resistance, anti-slip, anti-static features which can suit different environmental conditions.

It has characteristics of wear-resistant cutting, high tensile strength, and good flatness. The belt surface has more than 30 kinds of surface patterns to choose.

Now it is widely use in electronics, logistics, textile, ceramics, marble processing, airports, postal automation, parcel handling, treadmills, packaging and wrapping, confectionery industry, food processing
industry, wood processing industry,paper printing industry and so on.

The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.
