• Red rubber coated pvc conveyor belt Brick Belt used in ceramic industry

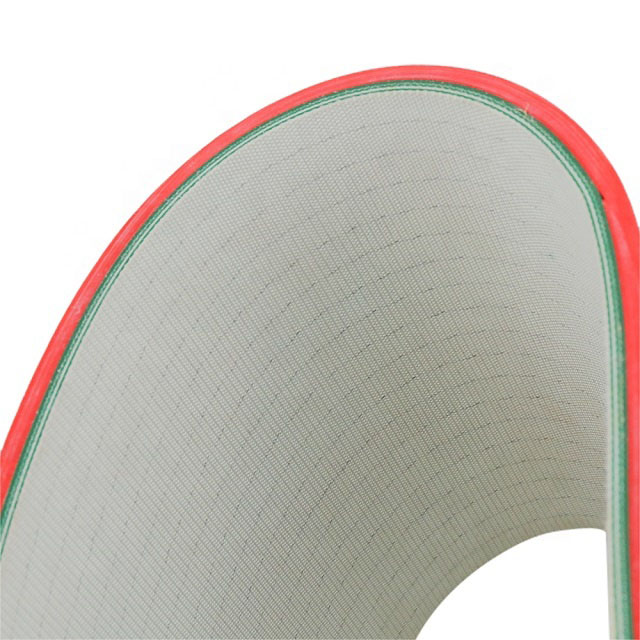

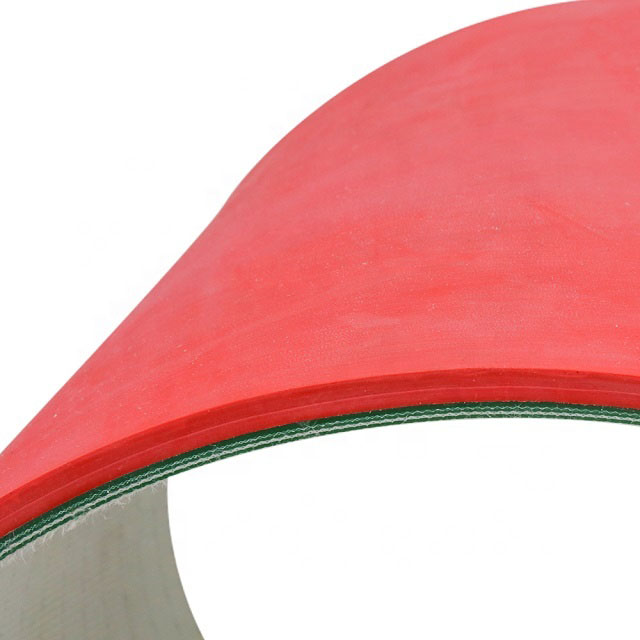

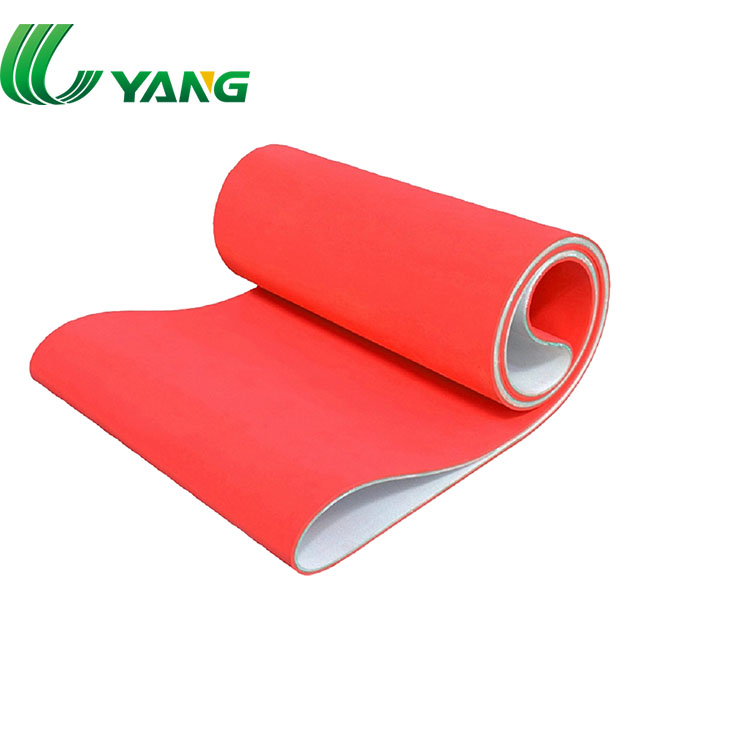

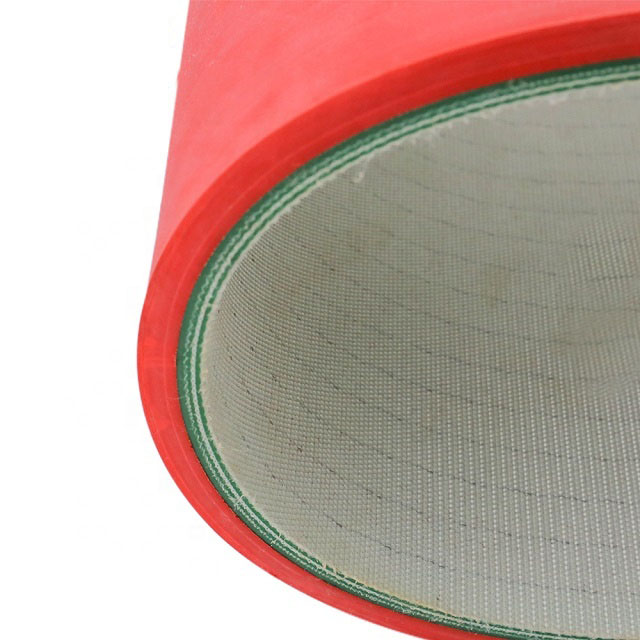

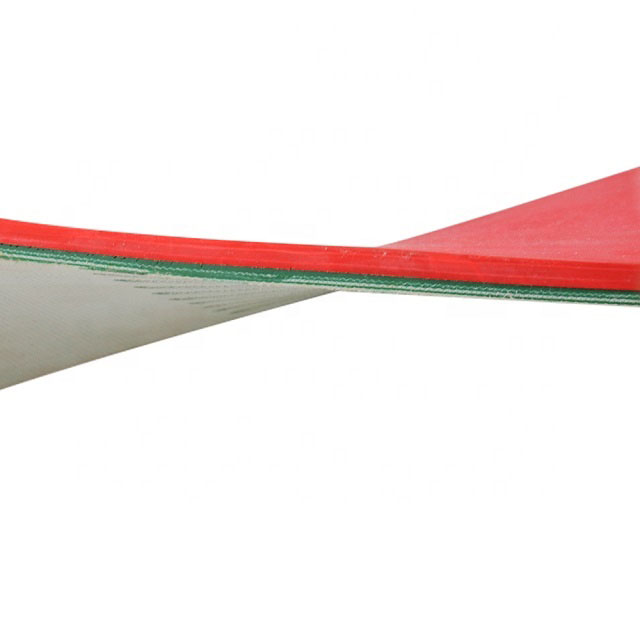

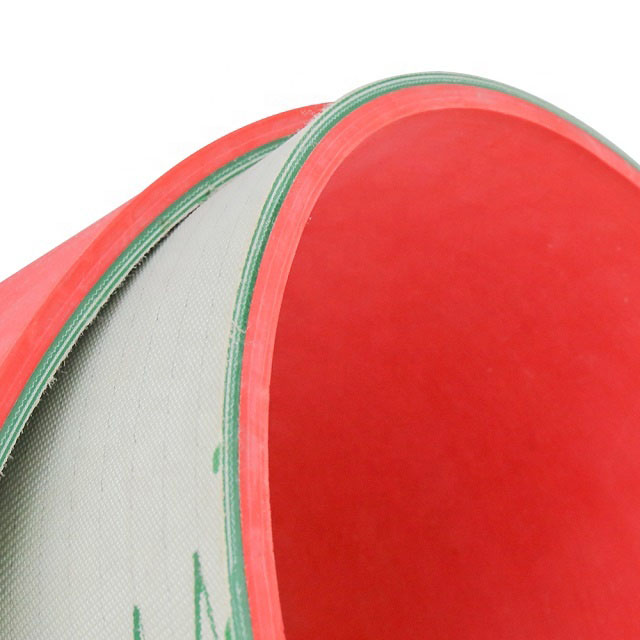

  Red rubber coated pvc conveyor belt Brick Belt used in ceramic industry

   Marble Belts, also called “Ceramic Polishing Conveyor Belt”, are mainly used in Ceramic Polishing Line, artificial marble,

  synthetic resin board production line, etc.;

   The bottom of Marble belts are reinforced fiber, which have the characteristics of strong impact resistance and wear resistance, high tensile strength, and long service life;

  Then the Marble Belt can be better to meet the using needs , when the stone are in various processing procedures such as

  transportation, polishing, and grinding;







Product characteristics

	Name	Red rubber coated pvc conveyor belt Brick Belt used in ceramic industry
	Brand	UYANG BELTING
	Surface	red rubber coated
	Structure	Red Rubber +PVC belt
	Thickness	10mm, 12mm, ....
	Thickness of PVC belt	1.0mm ---  9.0mm
	Thickness of red rubber	3.0 mm ---20.0mm

Red rubber coated pvc conveyor belt Brick Belt used in ceramic industry.

Name: Cutting Machine belt

Color: red

Structure:four plies fabrics and four PVC carrying the skeleton, the bottom coated with 0.3mm wear-resistant wear-resistant green polymer PVC adhesive, the surface coated with 6mm red cut-resistant Rubber mixing polymer glue. This scientific structure makes the belt horizontal and better longitudinal stability;

PVC conveyor belts are made of PVC which is commonly abbreviated PVC and polyester fabric, it's working temperate range is from -10 to 80 degrees, with good lateral stability, with special functions such as cold, heat, abrasion resistance, anti-slip, anti-static features which can suit different environmental conditions.

It has characteristics of wear-resistant cutting, high tensile strength, and good flatness. The belt surface has more than 30 kinds of surface patterns to choose.

Now it is widely use in electronics, logistics, textile, ceramics, marble processing, airports, postal automation, parcel handling, treadmills, packaging and wrapping, confectionery industry, food processing
industry, wood processing industry,paper printing industry and so on.

The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.
