- UYANG Belting Pneumatic timing belt joint welding machine

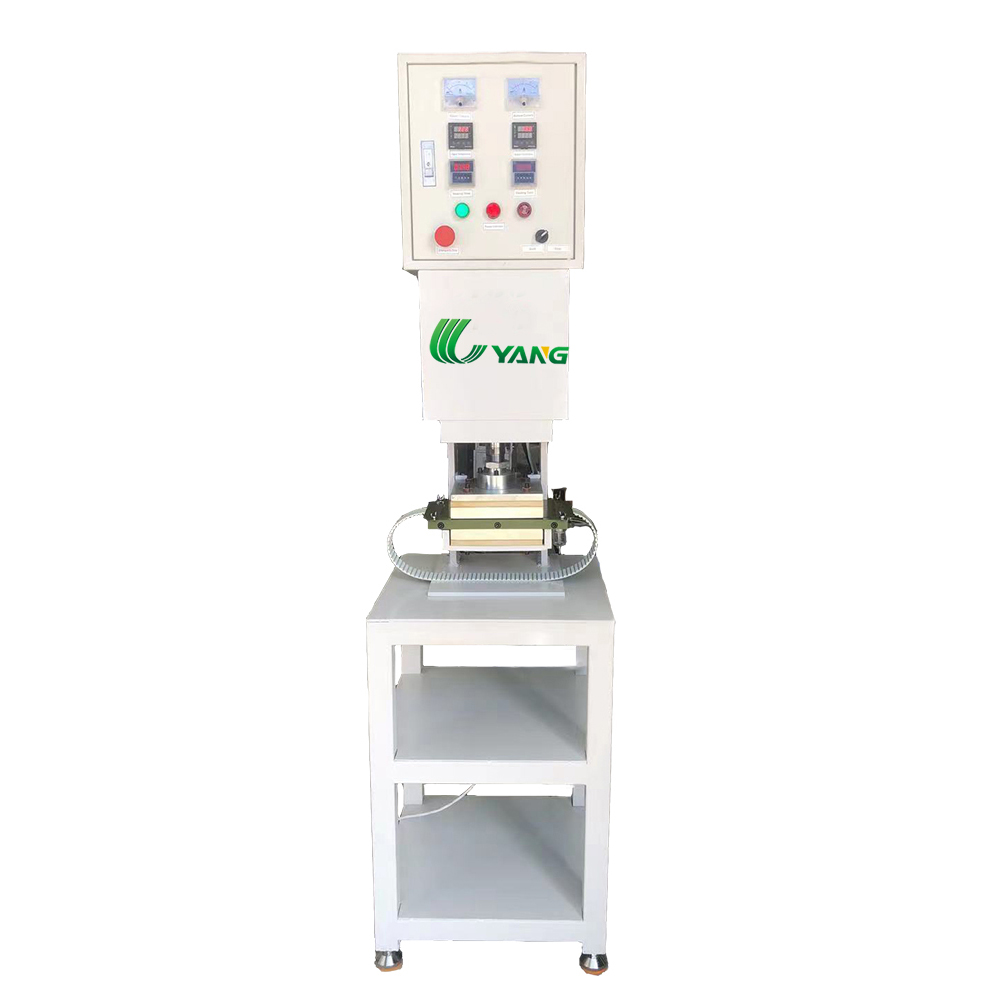

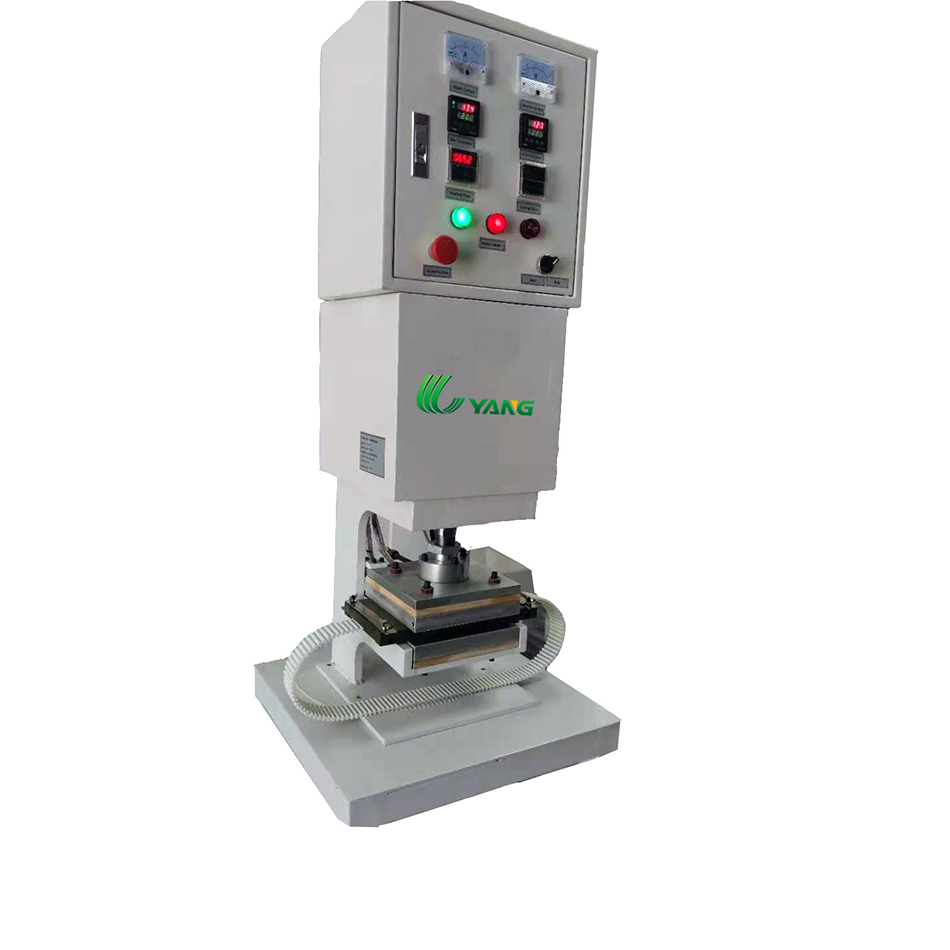

  Pneumatic timing belt joint welding Machine

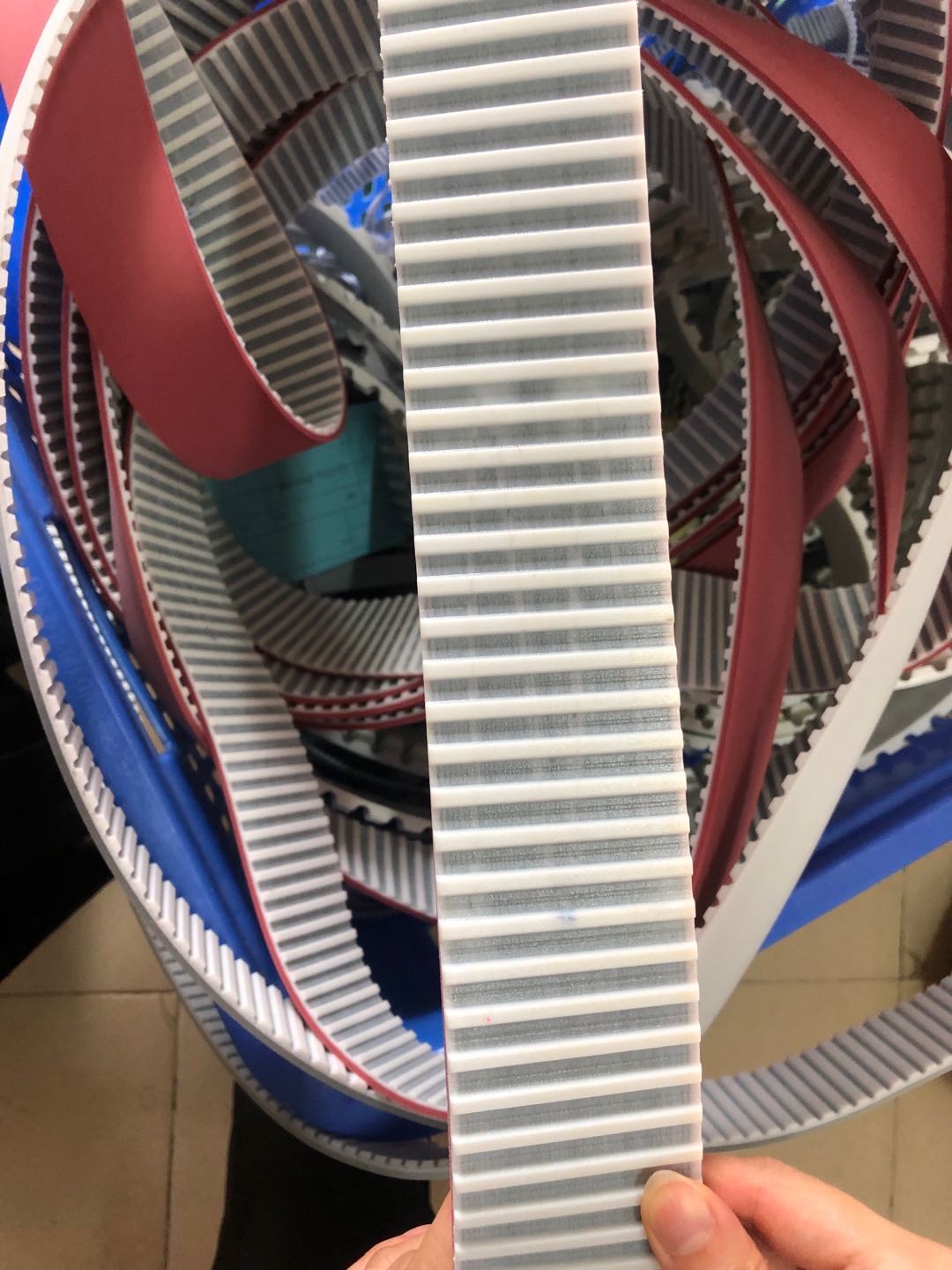

  This machine is for jointing timing belt in a ring shape ,such as T5, AT5, T10, AT10, 5M, 8M, S5M,S8M,H type,L type,T20,AT20 and etc.

  Optional:

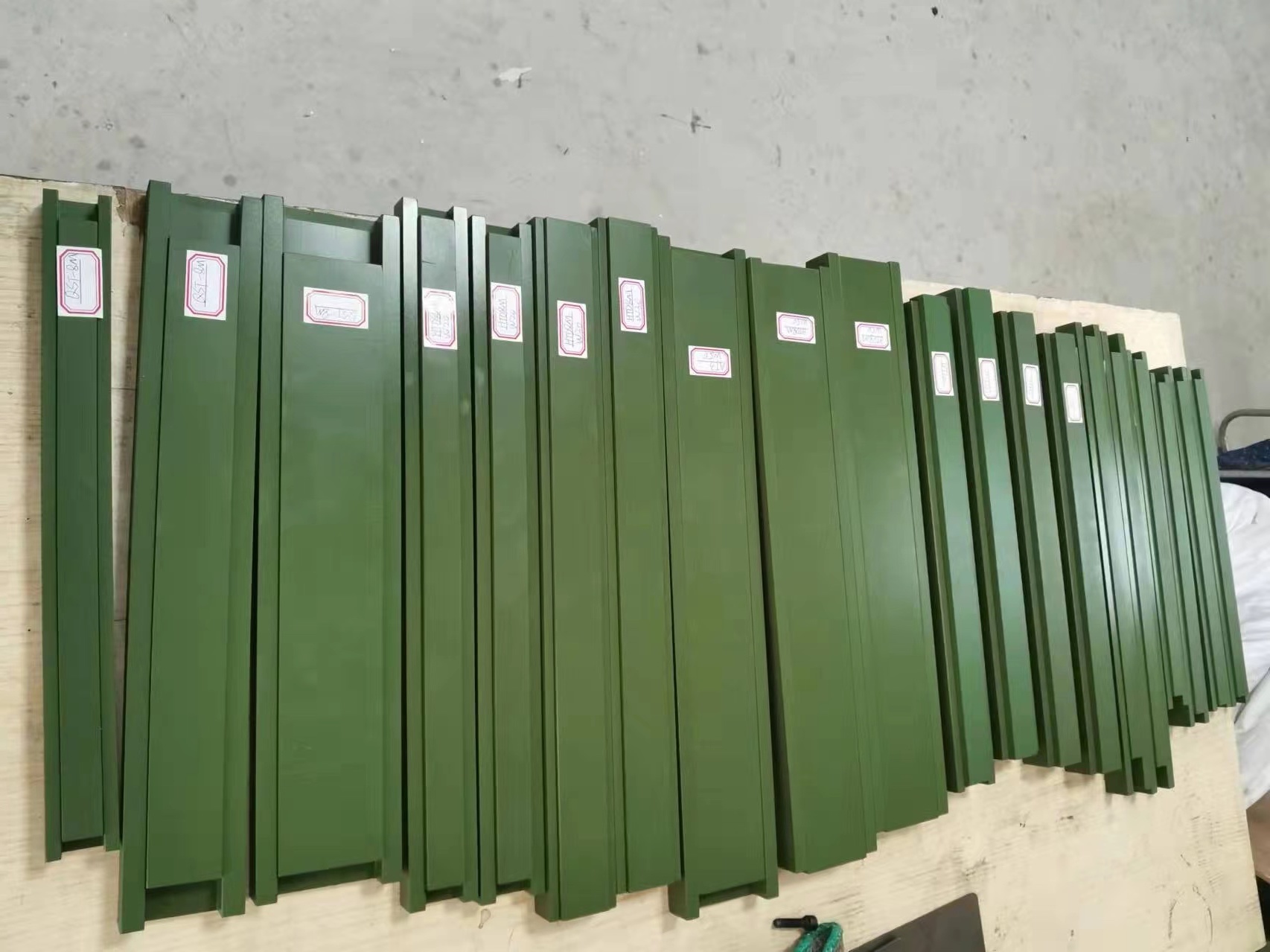

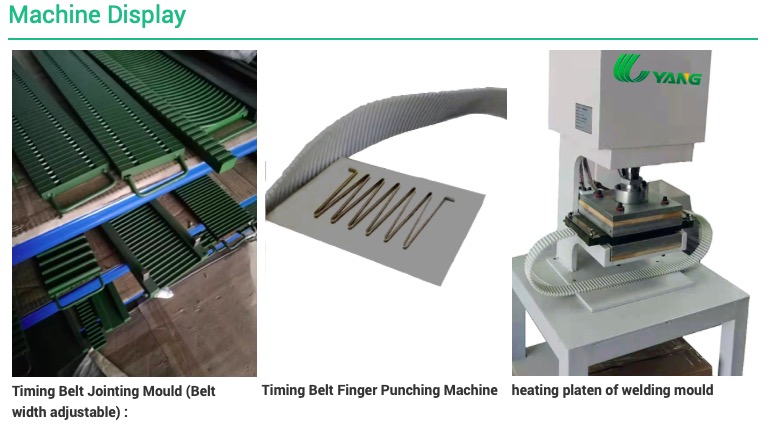

  1. Timing Belt Jointing Mould (Belt width adjustable).
  2. Self-Circulation Water Cooling System.
  3. Hydraulic Pressure system (Intead of pneumatic pressure system ).
Product characteristics

Specification
Technical Data:
Pneumatic timing belt joint welding Machine
1. Belt width: Standard 100/150/200mm, special size can also customized,for example 500mm and etc.
2. Heating Platen Size: 200*200mm For 150mm width belt.
3. Minimum Belt Perimeter: 850mm
4. Voltage: 380V ,3Phase or as optional.
5. Power: 7.1KW
6. With Pneumatic Pressure System , Air Pressure: 0.6Mpa
7. Temperature Range:50-230 ℃

How To Joint Timing Belt:
Pneumatic timing belt joint welding Machine
1.Make fingers on timing belt by timing belt finger punching machine.
2.Put belts in the welding mould and match the belt fingers.
3.Put welding mould into heating platen and make belt jointing.
4.After heating process finish, can get the finished timing belt.

Pneumatic timing belt joint welding Machine
Question: Why would the PU timing belt jointing is easy to break ?
Answer：According to the structure of timing belt, the steel wire core or wire core will be effect to the strength layer.....

Pneumatic timing belt joint welding Machine
Máquina de soldadura de junta de correa de distribución neumática;

Пневматический сварочный аппарат для ремня ГРМ;

Máquina de solda de junta de correia dentada pneumática

آلة لحام مفصل حزام التوقيت الهوائية
