- Uyang Belting 12KW High Frequency Belt Welding Machine for belt cleat, V Guide, sidewall

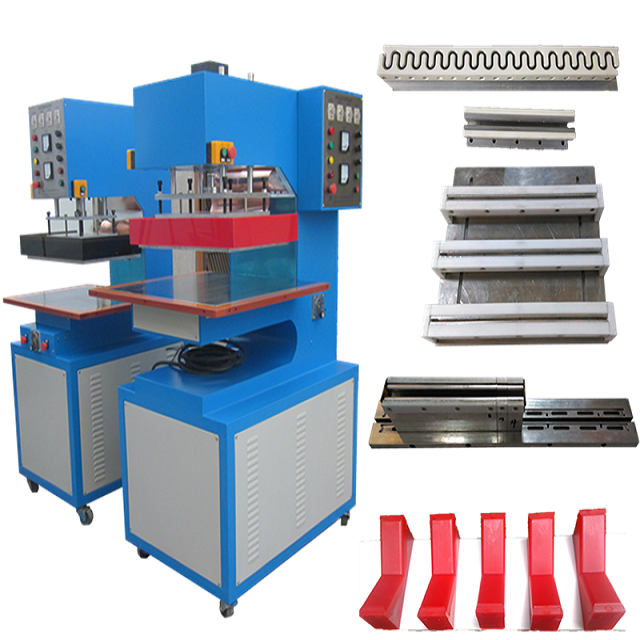

  High Frequency Belt Welding Machine for belt cleat, V Guide, sidewall
  High Frequency Belt Welding Machine, used for welding T Cleat, X Cleat, Sidewall and V guide etc. profiles on PVC PU conveyor
  belt.

  High Frequency welding machine is using for Fabrications of various cleats, steps and sidewalls can be done easily.

  High Frequency welding (HF) or Radio Frequency welding (RF) is the joining of PVC or PU material by supplying HF energy in the
  form of an electromagnetic field and pressure to the PVC or PU conveyor belt surfaces.
Product characteristics

Specification

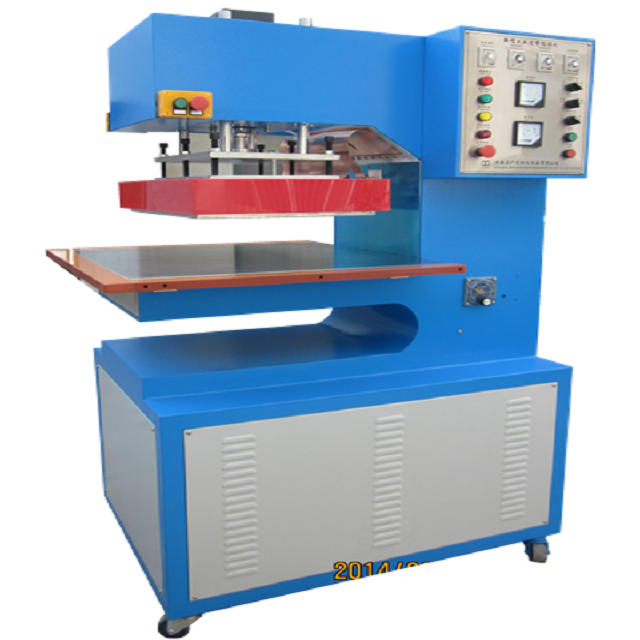

High Frequency Belt Welding Machine for belt cleat, V Guide, sidewall
Product Information:
1. Machine Power: 12KW
2. Welding Length: cleat, sidewall, V guide 500~600mm at one time
3. Max Belt Width: 1600mm
4. Working Voltage: 380V 3 Phases, other voltage available by request

Options:
1. Protection cover
2. Remote Control Box

High Frequency welder is specially made for the conveyor belt which is made of PVC and TPU, Conveyor Belts , T-Cleats and Fabricated Cleats ,Sidewalls..
Feature:
1. Used for industrial belt, conveyor belt, transmission belt, baffle, sidewall welding
2. Machine groove is deep and wide. It is convenient to weld large area.
3. Adopting high sensitive spark protect device to avoid damaging the mould.
4. Welding length can be extended to 700mm or longer for one time.
5. European model square high frequency vibration box, more stable in output.
Product Parameters
High Frequency Belt Welding Machine for belt cleat, V Guide, sidewall
Technical Specifications:
1. HF power outputs 12KW
2. Stable High frequency output
3. Input Power: 18KVA
4. Working frequency: 27.12Mhz
5. Power Supply: 3P 380V 50HZ
6. Universal for T-Cleats, X-Cleats, L-Cleats, Sidewalls, profile ,V-Guides etc.
7. Automated HF weld cycles
8. Easy setup and operation
9. Fully HF shielded, whole machine under protection
10. With serious protection: The current resistance protection, Spark protection and Emergency brake protection
11. High quality vacuum tube from CANON, made in Japan.
12. Use pneumatic lifting system
13. Upper weld platen size: 450*600mm
14. Size of working table: 800*800mm
15Can used for various material thicknesses and cleat/ side wall heights (upto 120mm)

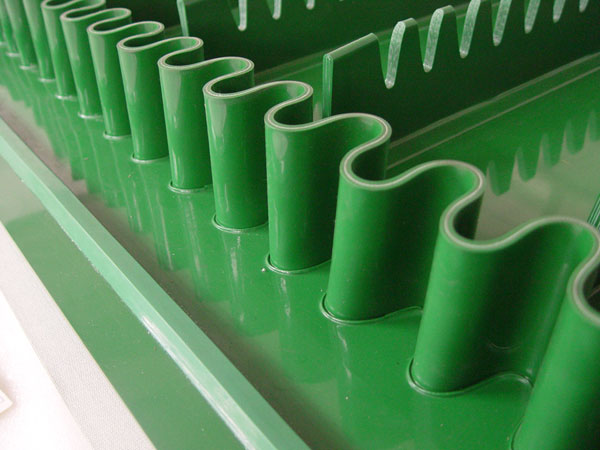

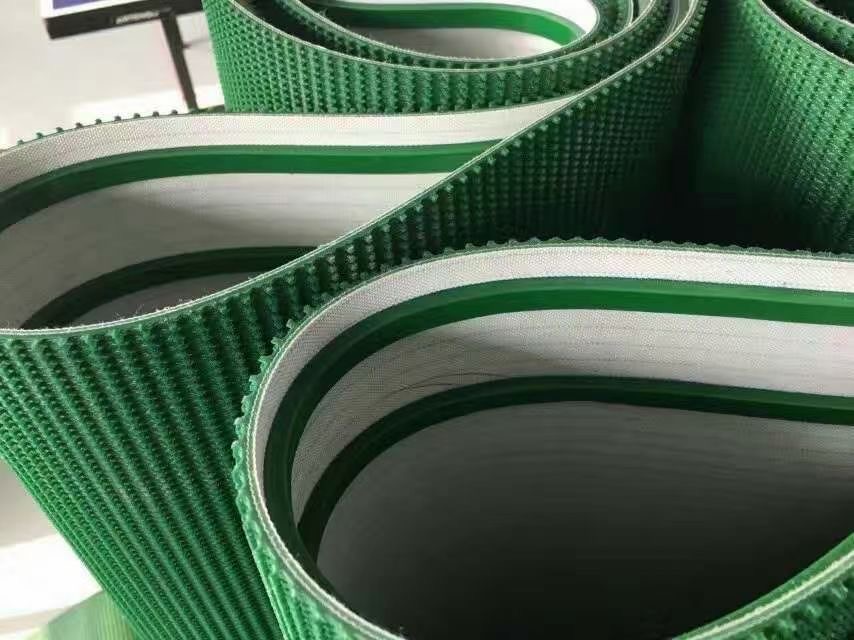

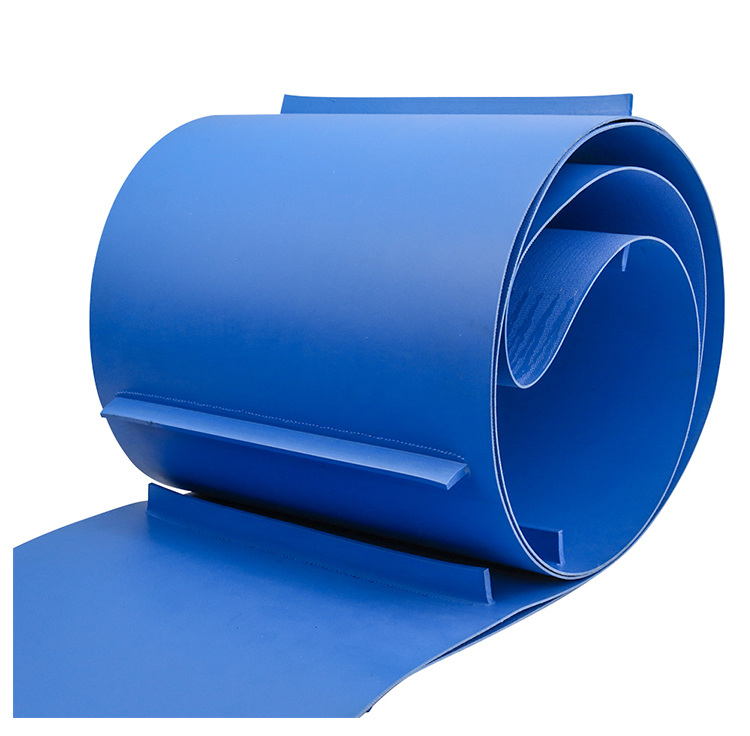

Result show

High Frequency Belt Welding Machine for belt cleat, V Guide, sidewall
Máquina de soldadura de banda de alta frecuencia para abrazadera de banda, guía en V, pared lateral

Высокочастотный ленточный сварочный аппарат для ленточной скобы, V-образной направляющей, боковины

Máquina de solda de correia de alta frequência para presilha de correia, guia em V, parede lateral

آلة لحام الحزام عالية التردد لمربط الحزام ، دليل V ، الجدار الجانبي
