Uyang Belting Belt Guide Welding Machine for PVC PU Belting

Belt Guide Welding Machine for PVC PU Belting
Guide welding machine is a specific operation machine to adhere the V type strip / Guide on the belt for lightweight belt.
Production Information:

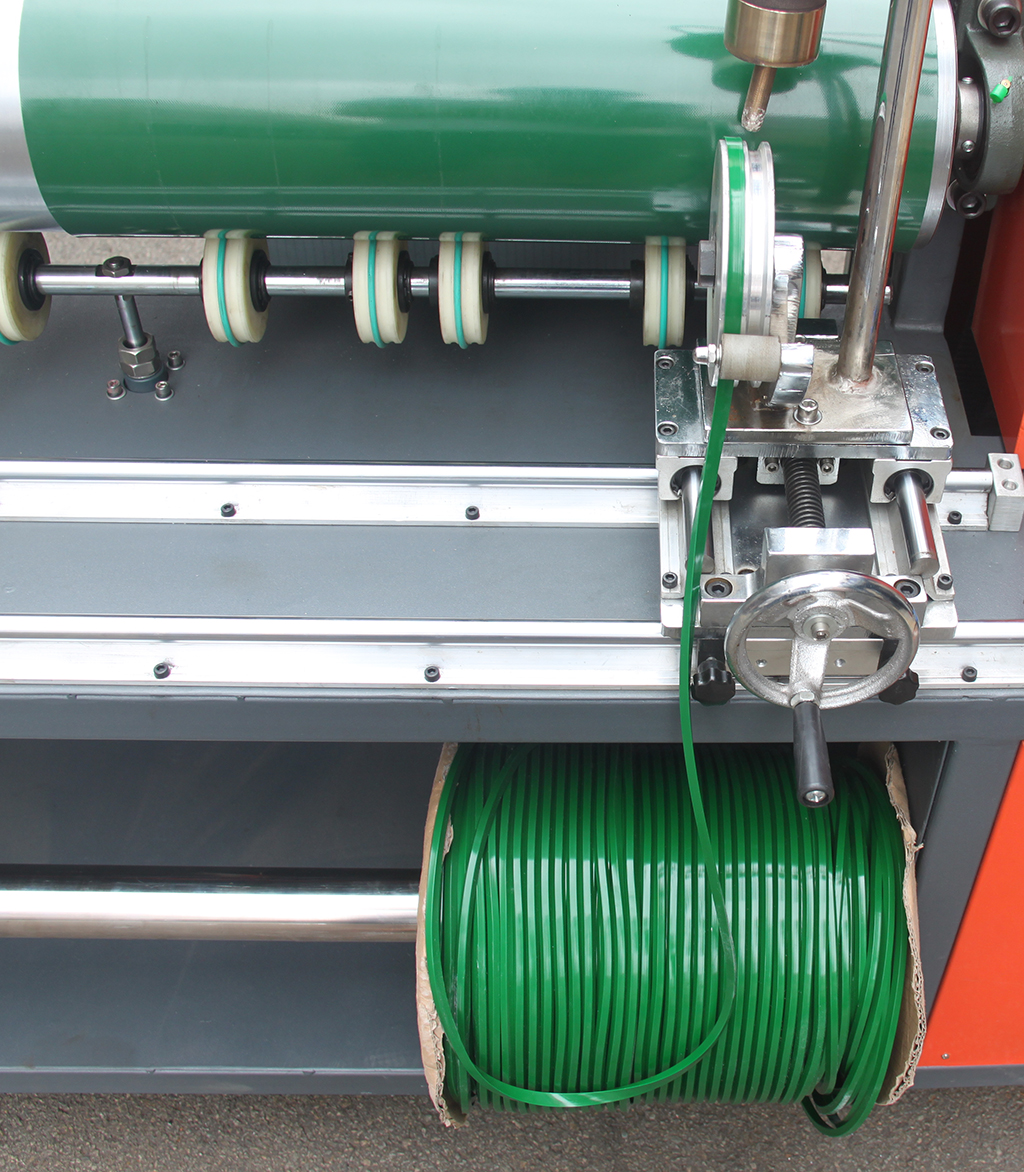

Guide welding machine is a specific operation machine to adhere the V type strip on the belt for lightweight belt. Working smoothly with frequency Inverter. The v type strip is arranged at a certain angle in parallel and evenly spaced on the guide strip board. The arrangement is orderly, neat and not easy to loose. The effect of using this machine is good.
Components:

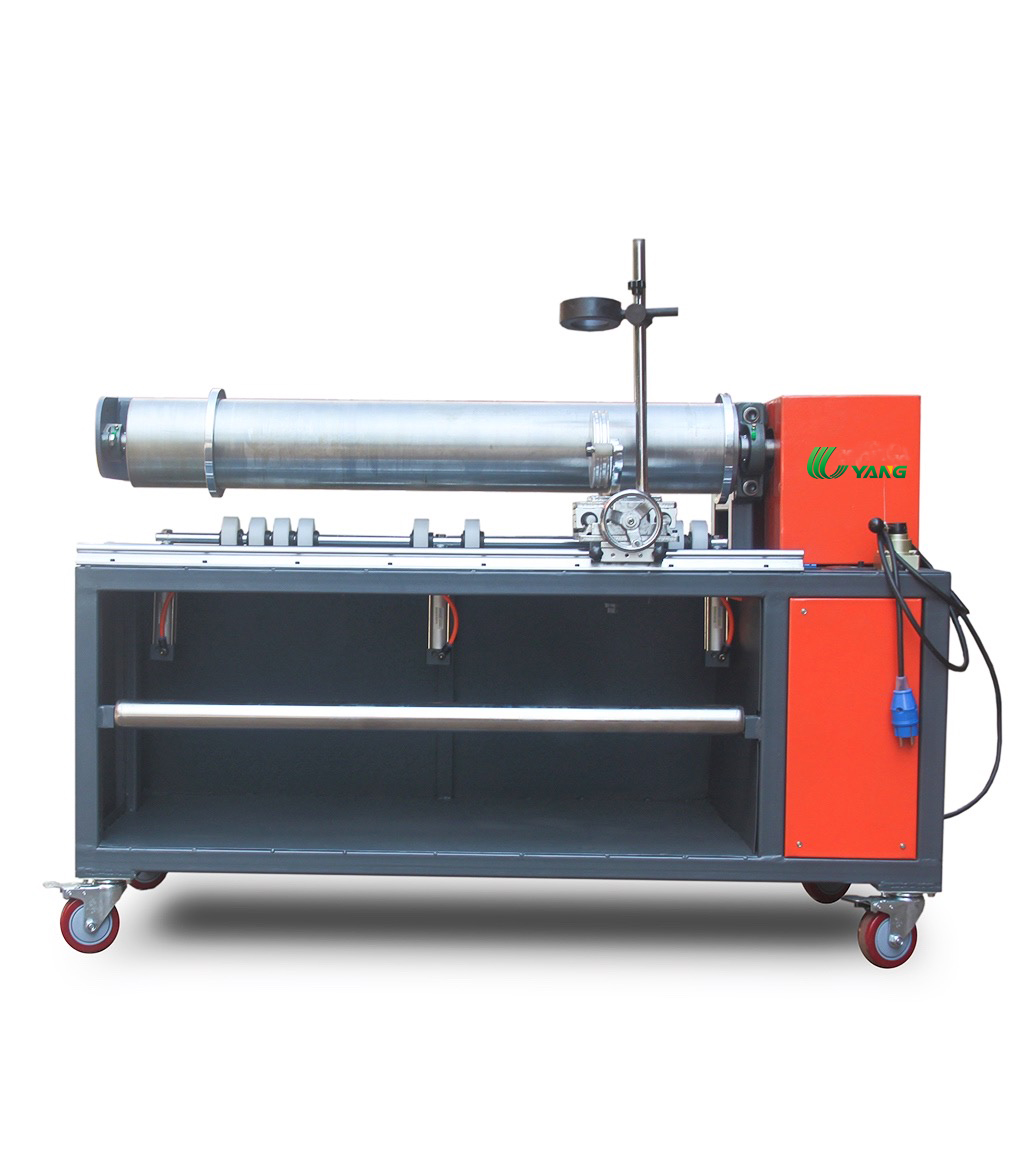

Guide machine is made of frame, motor, frequency inverter, anititive roller, press pulley, guide pulley, worktable, welding machine etc.

Product characteristics

Specification

Belt Guide Welding Machine for PVC PU Belting

Features:
High working efficiency, about 8m long per min
For different guide, use different mould, standard with machine size is 6x4 8x5 10x6 and 13x8, others can make accords to your requirements, like 17x11 etc.
Can use for endless belt
Open design for wide material and endless conveyor
High quality frequency inverter, easy to change the working speed
Grinding head is optional, for welding on fabric side use
 Wheel- base design, machine can be moved easily.
 Small footprint (no belt tension or floor track is required)

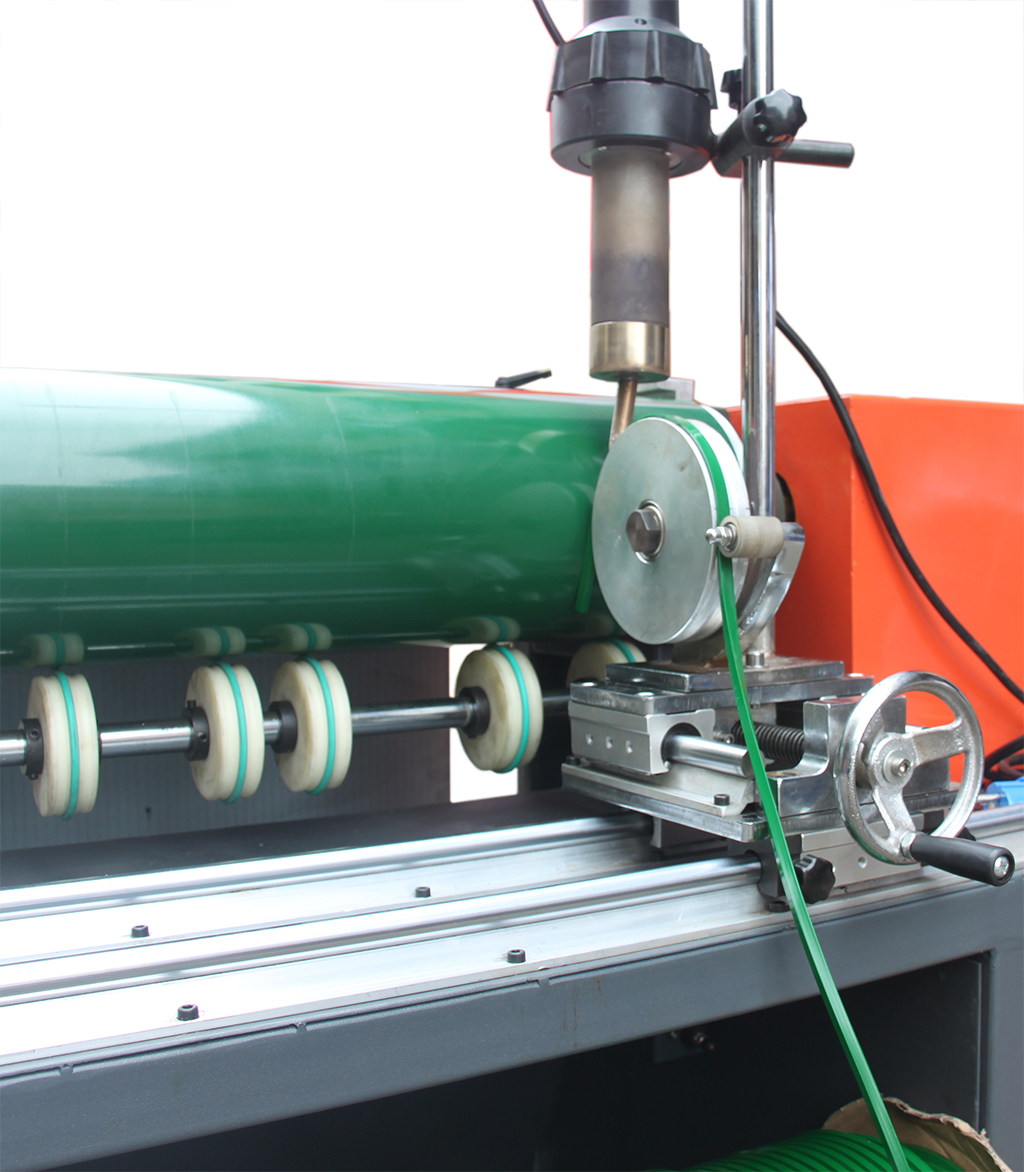

 Welding System: heat gun (standard offer without heat gun)
Guide Mould can be easy change, and make special accords to your requirements
Horizontal and Vertical direction move system, can easy control the welding head position
Use motor and high quality frequency inverter to control the roller running and speed
The shaft can control the belt running on the belt can pause the welding without power off the power

Optional:
Guide Wheel : 17*11, 22*14 ect.
Grinding Head, Grinds the belt in preparation for adhering the V-guides
Heating Gun Holder, If weld two guides on the same time, need this accessory.
Heating air gun

Product Parameters

item	UY1400	UY1600
machine Length	1400mm	1600mm
Machine Width	660mm	660mm
Machine Height	1350mm	1350mm
Machine Net Weight	180kgs	200kgs
Packing Weight	226kgs	270kgs
packing size	15407601180mm	17407601180mm
Power	550W	550W
Max Speed of Drum	4M/Min	4M/Min
Working Area Width of Drum	1000mm	1200mm

Belt Guide Welding Machine for PVC PU Belting

Welding System: heat gun (standard offer without heat gun)

Guide Mould can be easy change, and make special accords to your requirements
Horizontal and Vertical direction move system, can easy control the welding head position

Use motor and high quality frequency inverter to control the roller running and speed

The shaft can control the belt running on the belt can pause the welding without power off the power

FAQ

Q:Are you a manufacturer or trading company?
A: We are a factory and specialized in producing conveyor belt and Relative Machine of conveyor belt;
Q:Where are your products mainly exported?
A:Our products are distributed throughout the world,being involved in America,Britain,Holland,South-Korea,Turkey,India
     and Brazil.And our products win the good reputation of our foreign customers.If it is convenient,welcome to China.

Q: what's the advantage of our company?
A:We have our own laboratory in the company,so the clients can take some samples to perform exper-iment on the
     spot.And our technician will provide the best advice and choice for our clients.

Q:How about your company strength?
A:We choose to cooperate with the best raw material suppliers from both inside and outside of China.So our products
    have huge advantage in terms of variety.We can develop higher quality,better pricing conveyor belts under customer's
    strict usage conditions.Also,we provide customers with specifications of our products to better support their
     conveyingmachinery.

Q.How long about the delivery time?
A: about 10--20 days after we received the deposit.

Q. What is your payment terms?
A:40% deposit after confirmation and 60% balance before delivery or L/C at sight.
