• Uyang New Design European Type High Precision Ply Separator Used For PVC PU Belt

  New Design High Precision Ply splitting Machine European type pvc ply separator

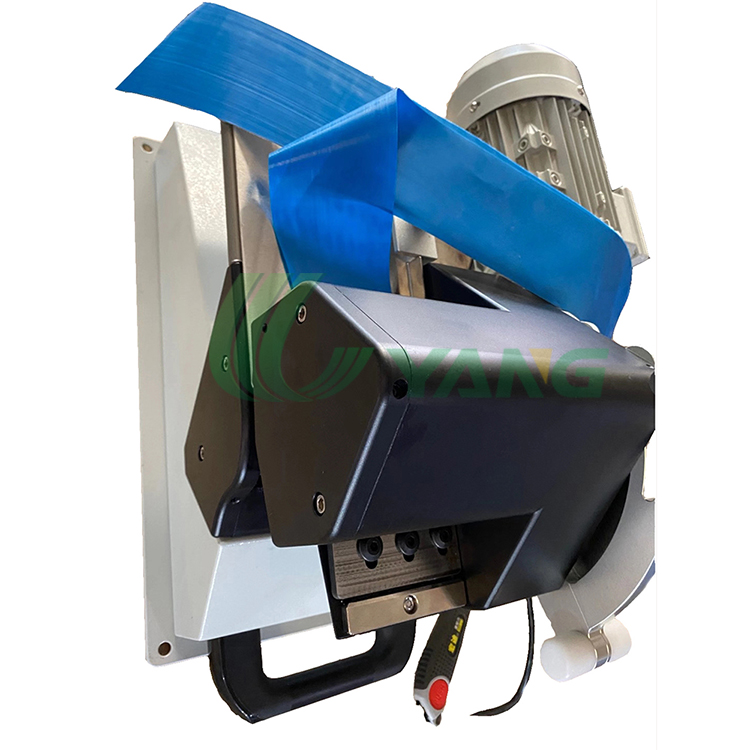

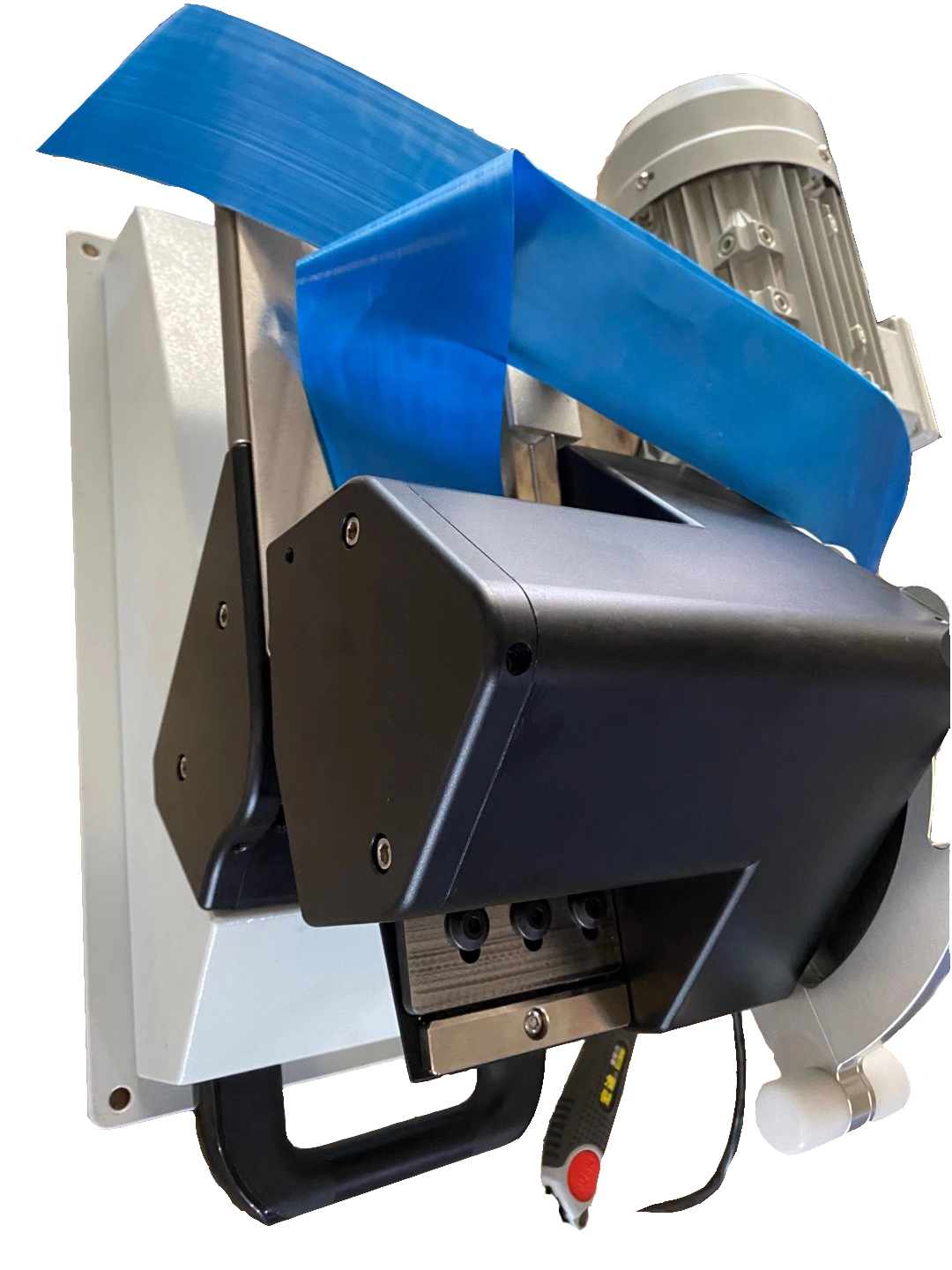

  Conveyor Belt Ply Separator designed to separate the fabrics for splicing at the ends of 2 and 3 ply conveyor belts for top quality splicing




  Production Information:
  1. Machine material: Aluminium structure
  2. Split deepth 130mm
  3. Split thickness: 1~15mm
  4. Suitable Belt: PVC PU Belt, light duty rubber belt and homogeneous PU belt.
  5. Motor Power: 0.37KW/50Hz
  6. Electric Connection: 380V 3 phases, 220V single phase is available as request

  Options:

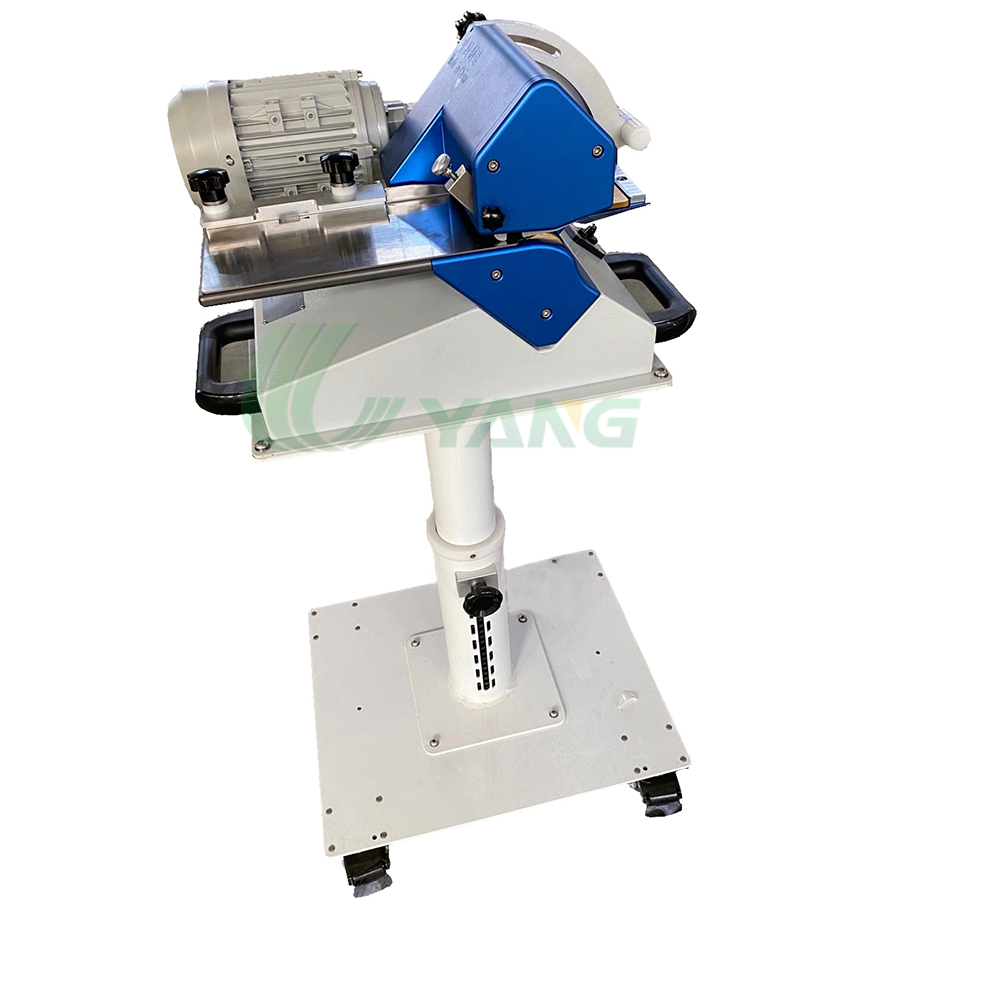

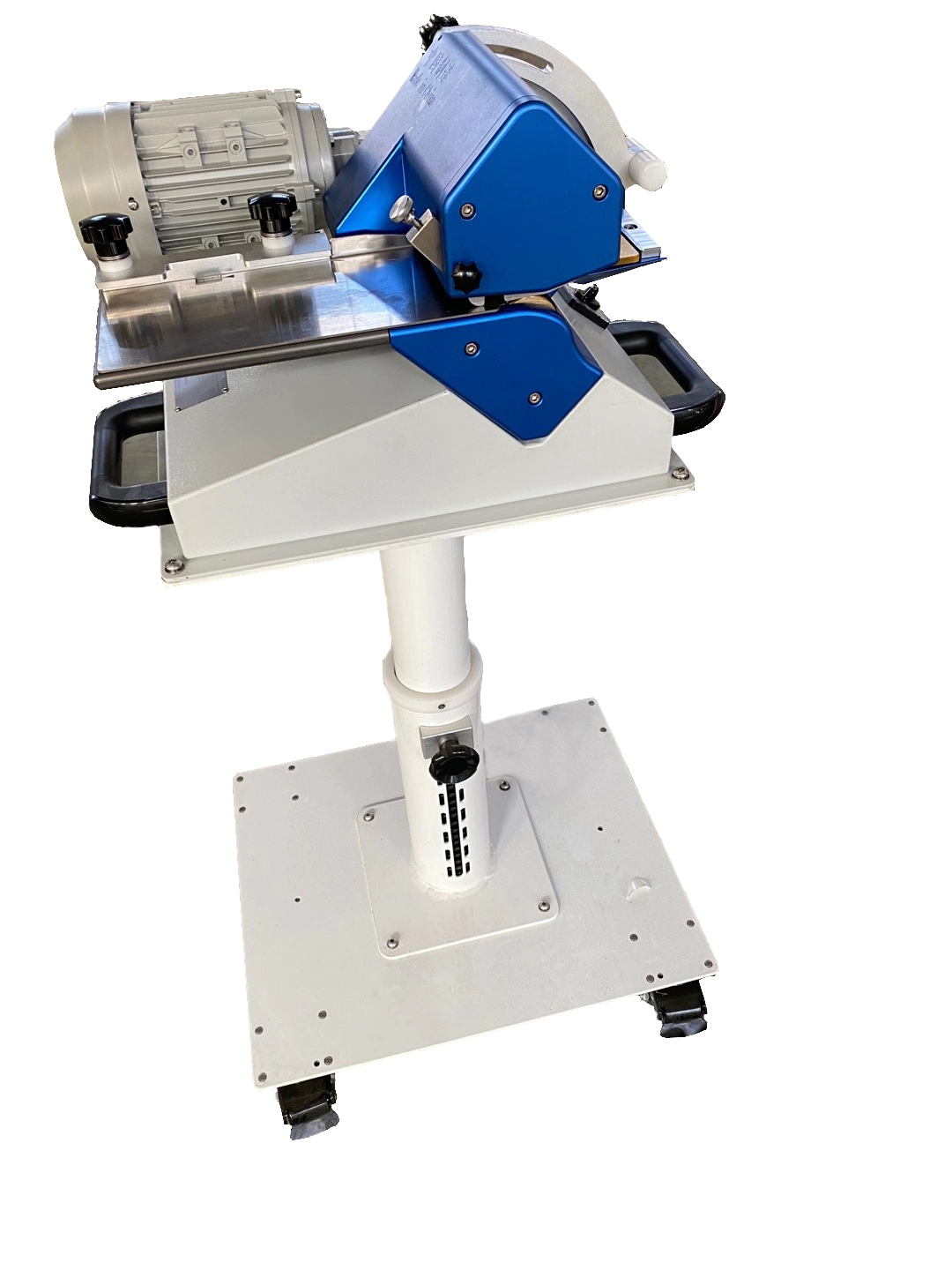

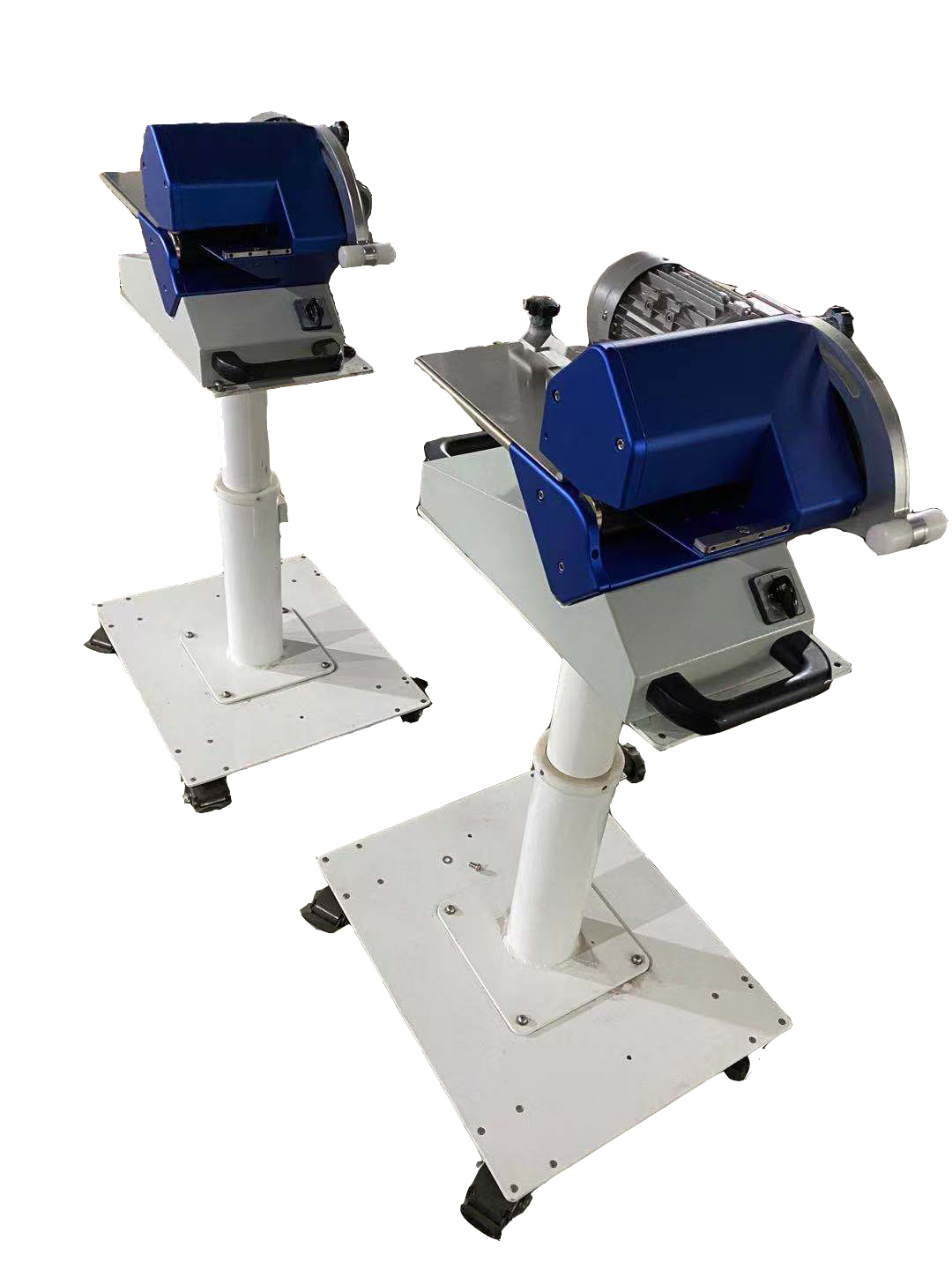

  1. Stand with wheels, easy to move at workshop
  2. Step cutter is optional, can cut the separated cover directly after splitting




Product characteristics

Specification

European type PVC/PU Ply Separator

* To separate belt plies 2 and 3 ply conveyor belts
* New replacement Hard alloy steel blade
* For PVC, PU belts and rubber belts

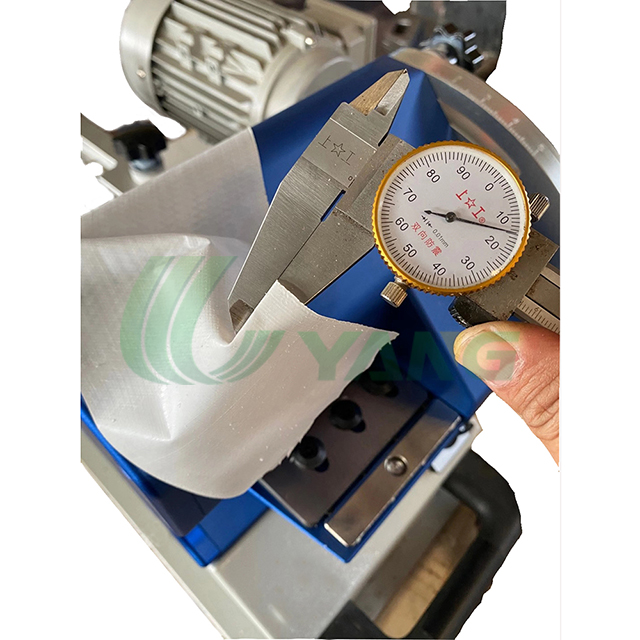

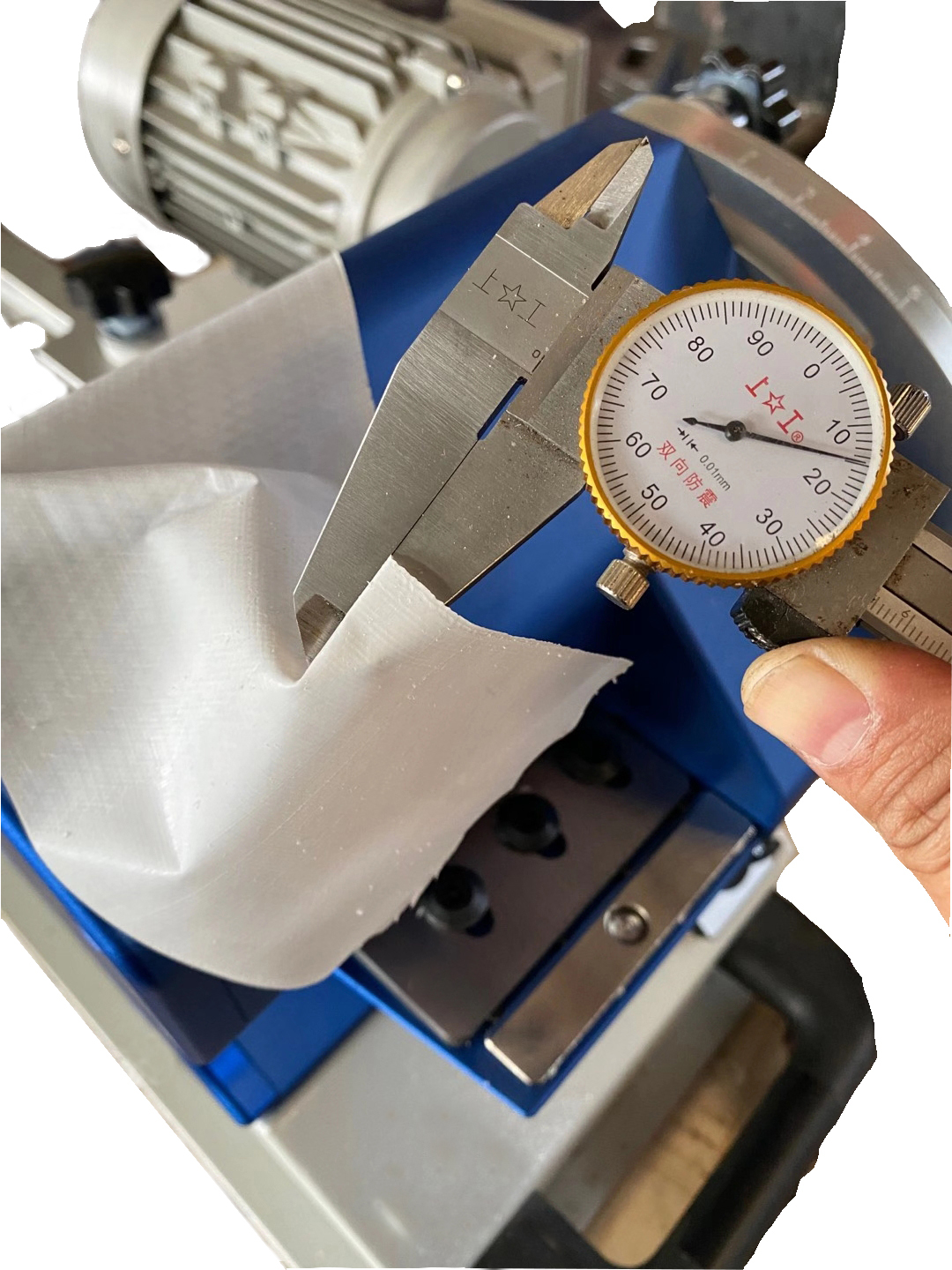

* With scale, high precision separation and easy work, high efficiency
* Foot pedal start / stop
* With cover, the worker can’t touch the blade, more safe when operation.
* Regulated adjustable blade position by means of a position scale.
* Reducer motor, 1370 r/min 50hz, 1660 r/min 60Hz, 1.07A
* The pulling roller exerts pressure on the belt via a air spring, thus ensuring even pressure on the belt.
* Can turn both forward and backwards - useful should it be necessary to wind the belt back.
* Side guide for adjusting the width of the cut, with width scales
* Standard is 380V 3phase, Available with all power sources

Details Images

FAQ

European type PVC/PU Ply Separator

Q:Are you a manufacturer or trading company?
A: We are a factory and specialized in producing conveyor belt and Relative Machine of conveyor belt;

Q:Where are your products mainly exported?
A:Our products are distributed throughout the world,being involved in America,Britain,Holland,South-Korea,Turkey,India
and Brazil.And our products win the good reputation of our foreign customers.If it is convenient,welcome to China.

Q: what's the advantage of our company?
A:We have our own laboratory in the company,so the clients can take some samples to perform exper-iment on the
spot.And our technician will provide the best advice and choice for our clients.

Q:How about your company strength?
A:We choose to cooperate with the best raw material suppliers from both inside and outside of China.So our products
have huge advantage in terms of variety.We can develop higher quality,better pricing conveyor belts under customer's
strict usage conditions.Also,we provide customers with specifications of our products to better support their
conveyingmachinery.

Q.How long about the delivery time?
A: about 10--20 days after we received the deposit.

Q. What is your payment terms?
A:40% deposit after confirmation and 60% balance before delivery or L/C at sight.
