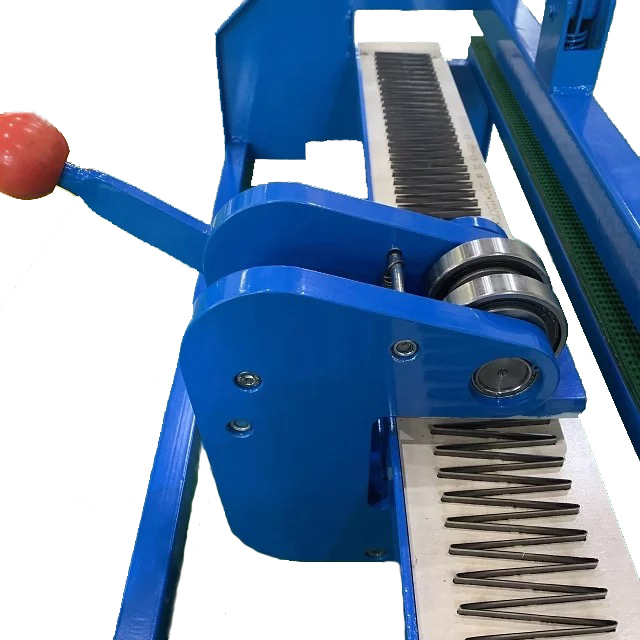

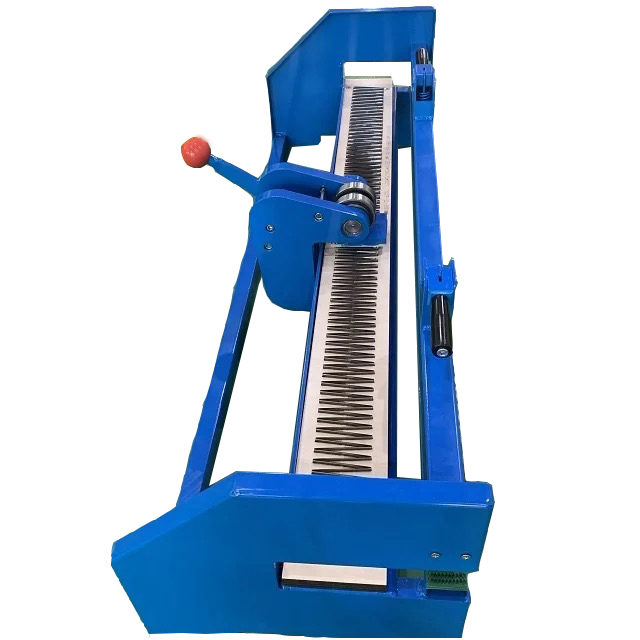

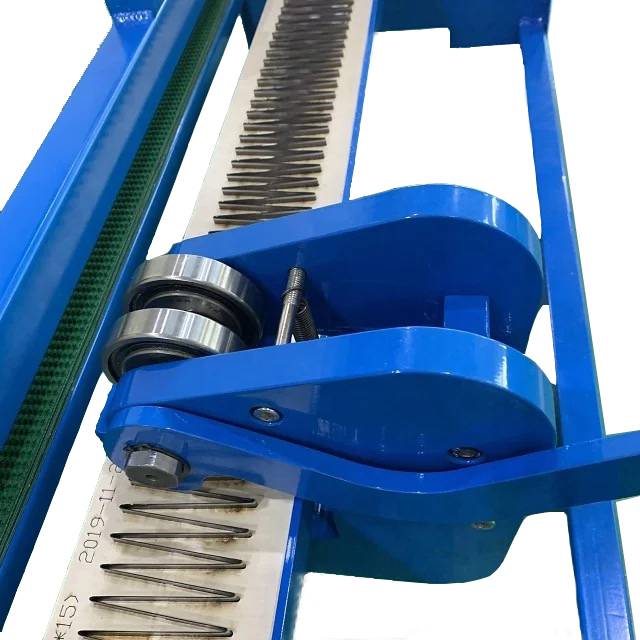

• Uyang Belting PVC PU Belt Manuel Finger Puncher

  Portable Design Manuel belt finger puncher used for PVC PU Conveyor Belt

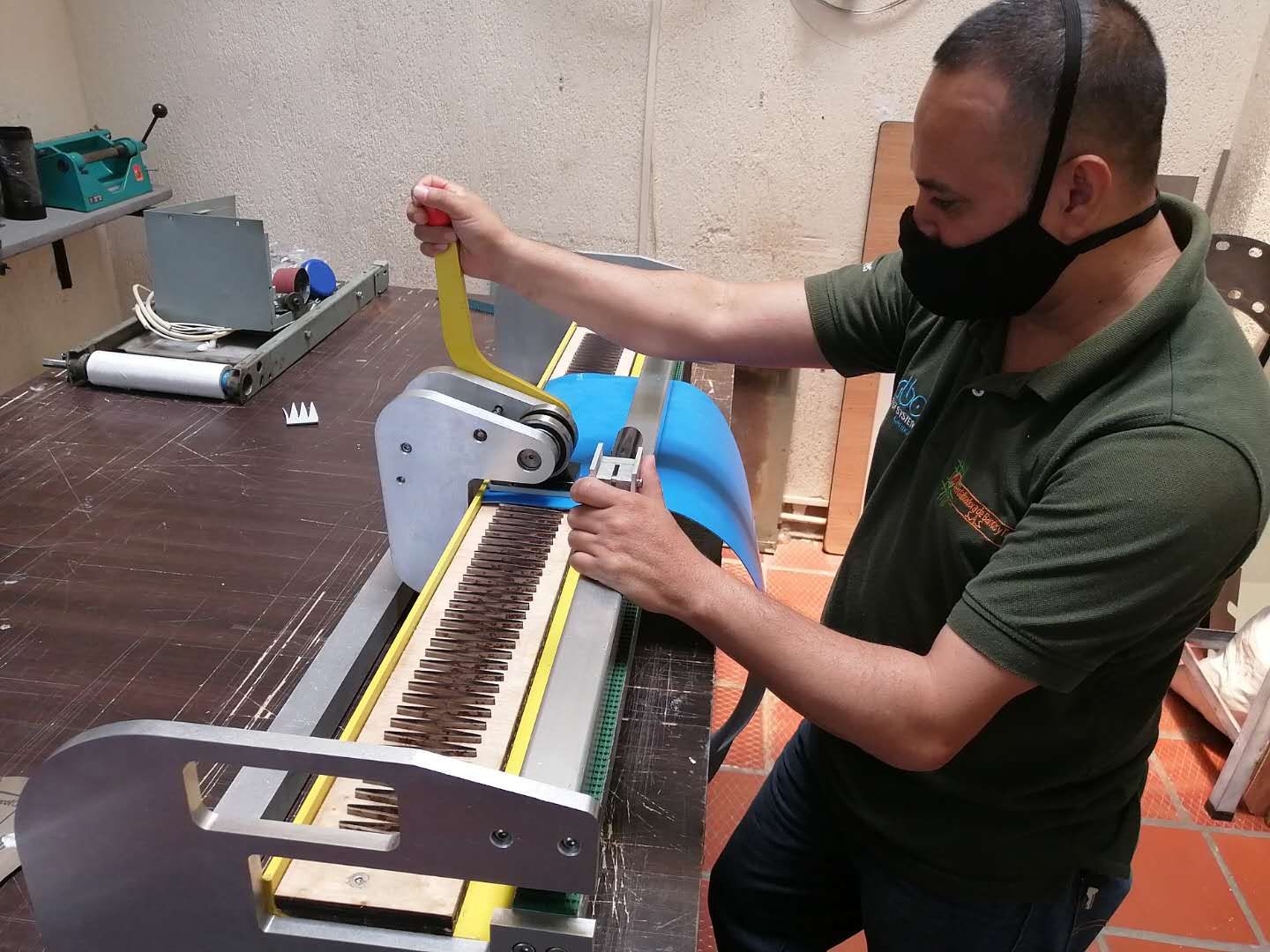

  Manual finger puncher suitable for site use, light weight and portable, prepping finger and finger-over-finger splices for PVC and


  polyurethane belts.




  Product Information:

  1. Punching System: Mechanical punching   (manual operation)
  2. Moving System: Manual
  3. Belt width: Open construction make it  possible to punch wider belts. Punching area: 300mm (12″) to 1500mm (60″)

  4. Machine Material: Steel
  5. Max belt thickness: 5mm
  6. Electric connection: No electricity or air compressor required

  Options:
  1. Cutting board (20x50 15x75 etc. also can offer diamond design and inclined finger)




Product characteristics

Manuel Finger Puncher used for PVC PU Conveyor Belt

1.The newest manual finger puncher, have different models width from 24″ (300 mm) to 60″ (1500 mm)(no width limited),   special width can make for you!
2. Used for PVC PU belt etc.
3. Light weight and portable design, very good choice for outdoor work use, no need electric power, no need air compressor, no need bring hydraulic pump etc.
4. Both side, open design, no width limited

5. Easy change the blade accords to work, also different blade size can make accords to your requirements       (20×50,15×75,10×80,20×80 and etc., also round and sharp blade is optional)
6. Special Fingers: Diamond Finger, Joint More Tighting

7. Single finger splice & double fingers splice

Product Paramenters

Model	UY300	UY600	UY900	UY1200	UY1500
Machine length(mm)	530mm	890mm	1120mm	1490mm	1650mm
Machine Width(mm)	390mm	390mm	390mm	390mm	390mm
Machine Height(mm)	380mm	380mm	380mm	380mm	380mm
Weight(kgs)	19kgs	27kgs	36kgs	41kgs	47kgs
Packing Weight(kgs)	35kgs	50kgs	65kgs	74kgs	80kgs
Packing Demension(mm)	580*500*480	1010*500*480	1330*500*48	1400*510*480	1580*510*480

FAQ

Q:Are you manufactrer or trading company?

A: we are one manufacturer of conveyor belt and relative machine for 20 years;

Q:How about the quality of this product?

A: The quality and performance of our products have reached the advanced level of the European Brand ;

    and the price is more competitive;

Q: How to guarantee the quality of your products?

A: 1) Strict detection during production.

    2) Strict sampling inspection on products before shipment and intact product packaging ensured.

Q.How long about the delivery time?

A: about 10--20 days after we received the deposit.

Q. What is your payment terms?

A:40% deposit after confirmation and 60% balance before delivery or L/C at sight.
