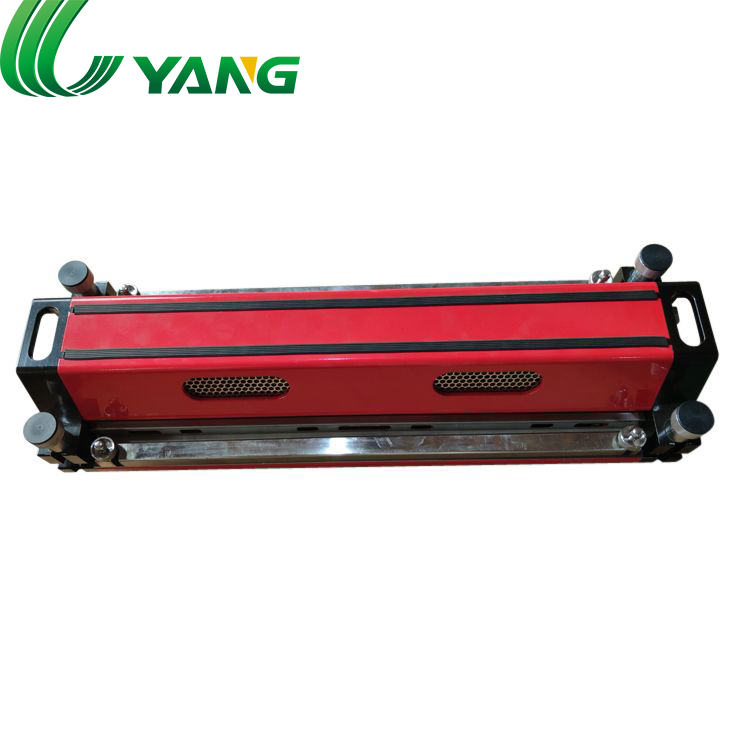

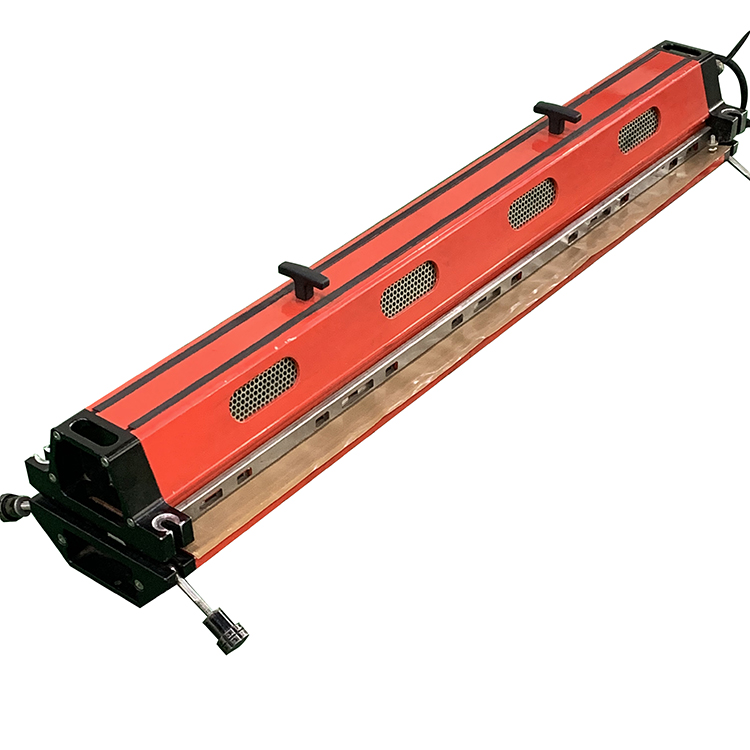

- Uyang Belt PVC Conveyor belt air cooled hot press jointing machine

  All In One Air Cooling Press
  Uyang Belt PVC Conveyor belt hot press jointing machine air cooled press belt
  Air cooled press,The All In One Splice Press, new Portable Splice Press.This air cooled press has all components integrated into the tool, allowing a user to simply plug it into electricity and it is ready for use.

  Fast Splicing and is Portable Splice Press, easy to bring to anywhere.
  Product Information
  Air Cooling PVC PU Belt Splice Press
  1. Cooling: Air Cooling
  2.Belt width from 24″(300 mm)to 95″(2400mm)
  3. Machine Material: Aluminum
  4. Working Pressure: 2 bars / 28PSI / 0.2Mpa
  5. Heating Effective width: 130mm Generation 2/ 150mm Generation 3
  6. Flight case included.
  Options:
  1. Support Stand (for workshop use), pneumatic lift
  2. Jointing Accessories, like PTFE film & pad, Silicone Pad-set, PVC/PU film etc. can help for better jointing.
Product characteristics

Uyang Belt PVC Conveyor belt hot press jointing machine air cooled press belt
Features:
* The UY series air cooled press, have different models for width from 24″ (300 mm) to 95″ (2400 mm)
* Used for splicing PVC PU PVK Printing Blankets belt etc. thermoplastic belt materials
* Portable Conveyor Belt Splice Press, light weight and with flight case as standard packing, is easily removed to
any where for job site use.
* Fast Splicing: include heating time and cooling time, no more than 12 mins.
* Temperature up to 200 ºC (392 ºF)
* All in one design: The press has an integrated air-cooling system and also air compressor inside.
To ensures that the belt is quickly cooled down and auto press on, without water pump or additional
air compressor.
* Easy to use and assemble, how to operate pls freely to refer to below video.
* Light weight aluminum construction
* Reliable and automatic Temperature Control with time control. High quality Eurotherm controller.
* Air pressure controller (set the air pressure and display the current pressure), High quality SMC controller.
* Voltage: 220V or 380V, if special voltage pls freely to inform us, like 110V (only under 1200mm, include 1200) etc.
* If used in workshop, pneumatic lifting steel stand is optional.

Specification:
Uyang Belt PVC Conveyor belt hot press jointing machine air cooled press belt

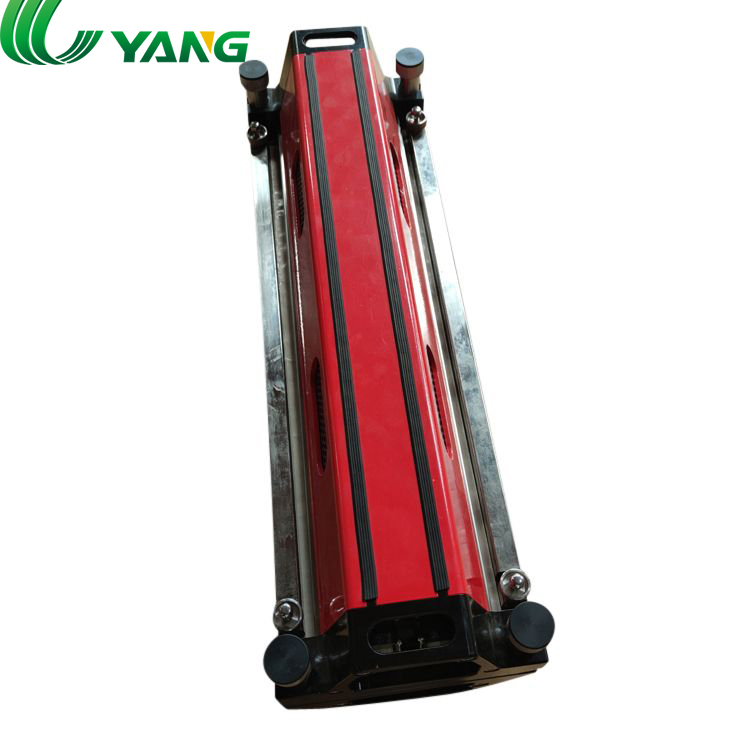

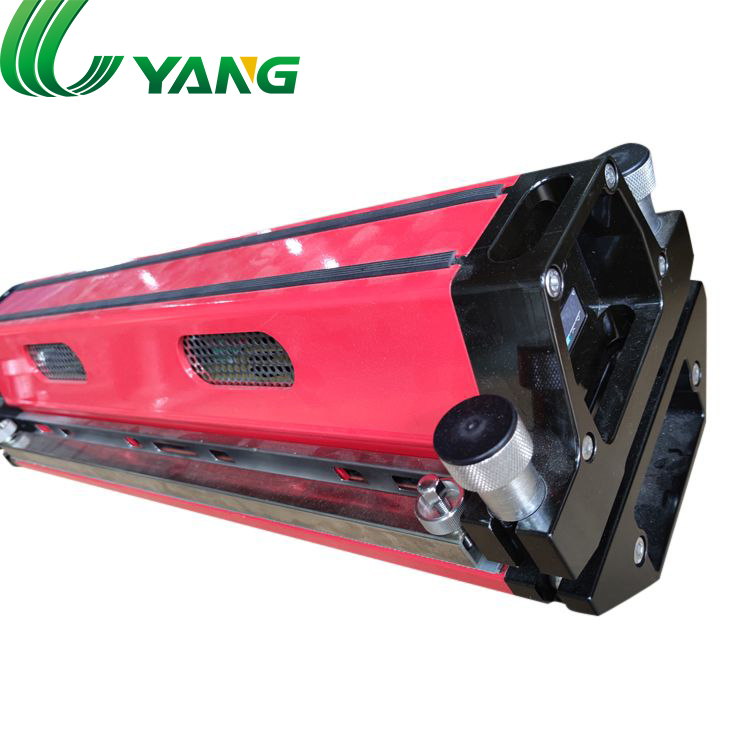

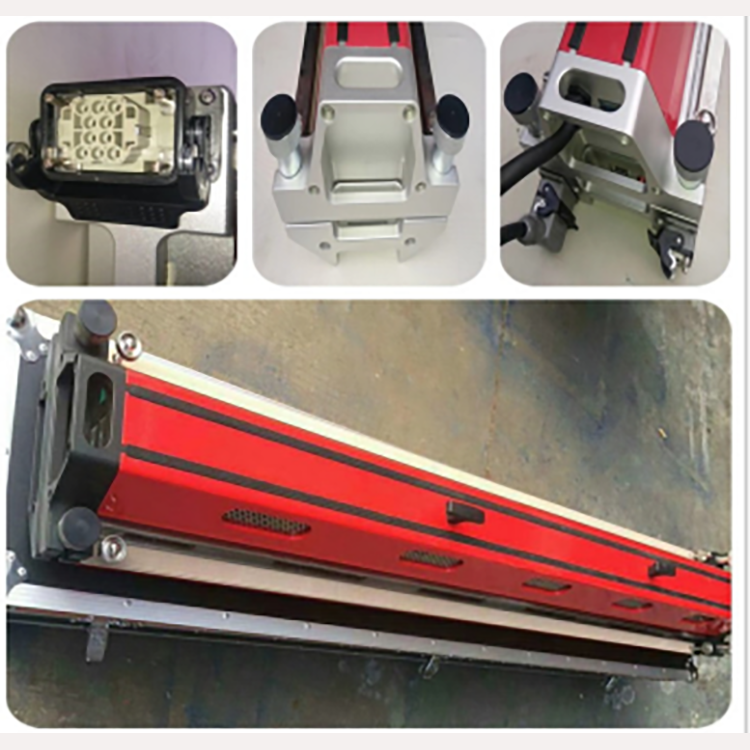

FRAME
Extruded aluminum alloy body, make the total machine lightweight, even 2100 press, only 125kgs. Low profile height only 83mm. Both end caps machined by CNC machine. Outside high quality painting (red color is our standard color, we also can offer other color, like blue by your request), hand polishing the whole body, make sure is safe for your workers.

HEATING PLATEN
Include upper and lower heating platens, both use silicone Element heating system and work with titanium heating plate, can offer fast and even heating when jointing. Heating elements are completed sealed, covered by silicone rubber. Make sure is far from air, longer life time and moisture-proof, more safe. The inside heating elements distribution under control of computer, produced by automatic machine, not manually wired.

COOLING SYSTEM
Several high-performance fans on the upper frame ensure can cooling down from 180C to 65C only take 4m30s to 5m30s.
New generation air cooling press, have fans on both of upper and lower frame. All the fans will start work automatically when dwell time finished. The cooling temperature also can be adjust by yourself.

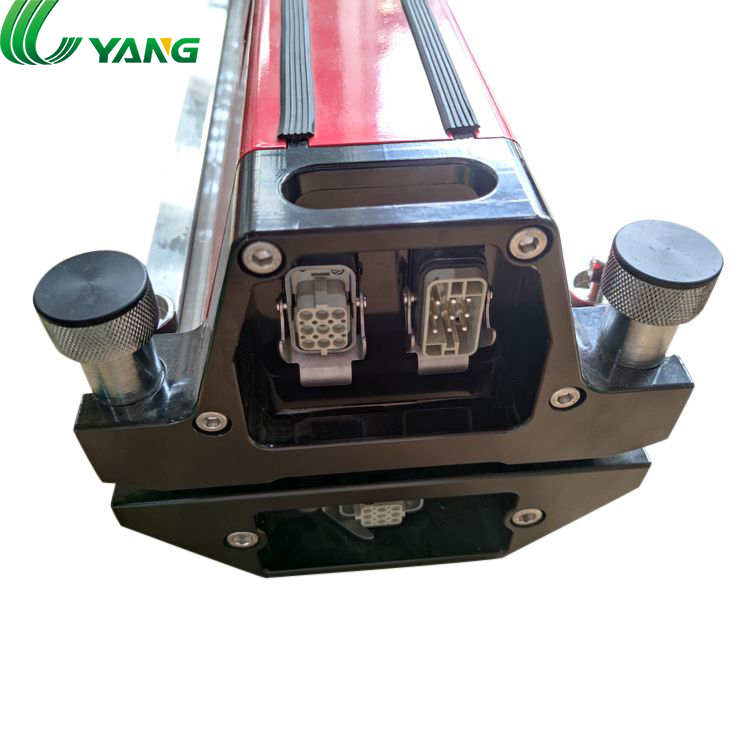

CONTROL PANEL
Built in the frame of the press and easy to operate. Temperature control (setting heating temperature and cooling temperature) and time control (dwell time setting) in one meter. Pressure control is independent, special supply from SMC pneumatic Japan, with pressure limitation, make sure the workers can’t set pressure higher than 2 bars, more safe.
PRESSURE SYSTEM
UY press has a maximum operating pressure of 2.0kg/cm (2 bars), that is applied with air pressure bag inside the bottom frame.Each air bag, we will test pressure and air tightness detection before install to the machine. The build in air compressor can make the pressure to 1 bar in 15~20S.

FAQ
Q:Are you manufactrer or trading company?
A: we are one manufacturer of conveyor belt and relative machine for 20 years;

Q:How about the quality of this product?
A: The quality and performance of our products have reached the advanced level of the European Brand ; and the price is more competitive;
Q: How to guarantee the quality of your products?
A: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.

Q.How long about the delivery time?
A: about 10--20 days after we received the deposit.

Q. What is your payment terms?
A:40% deposit after confirmation and 60% balance before delivery or L/C at sight.
