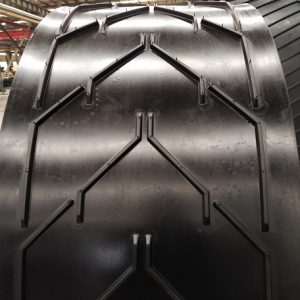

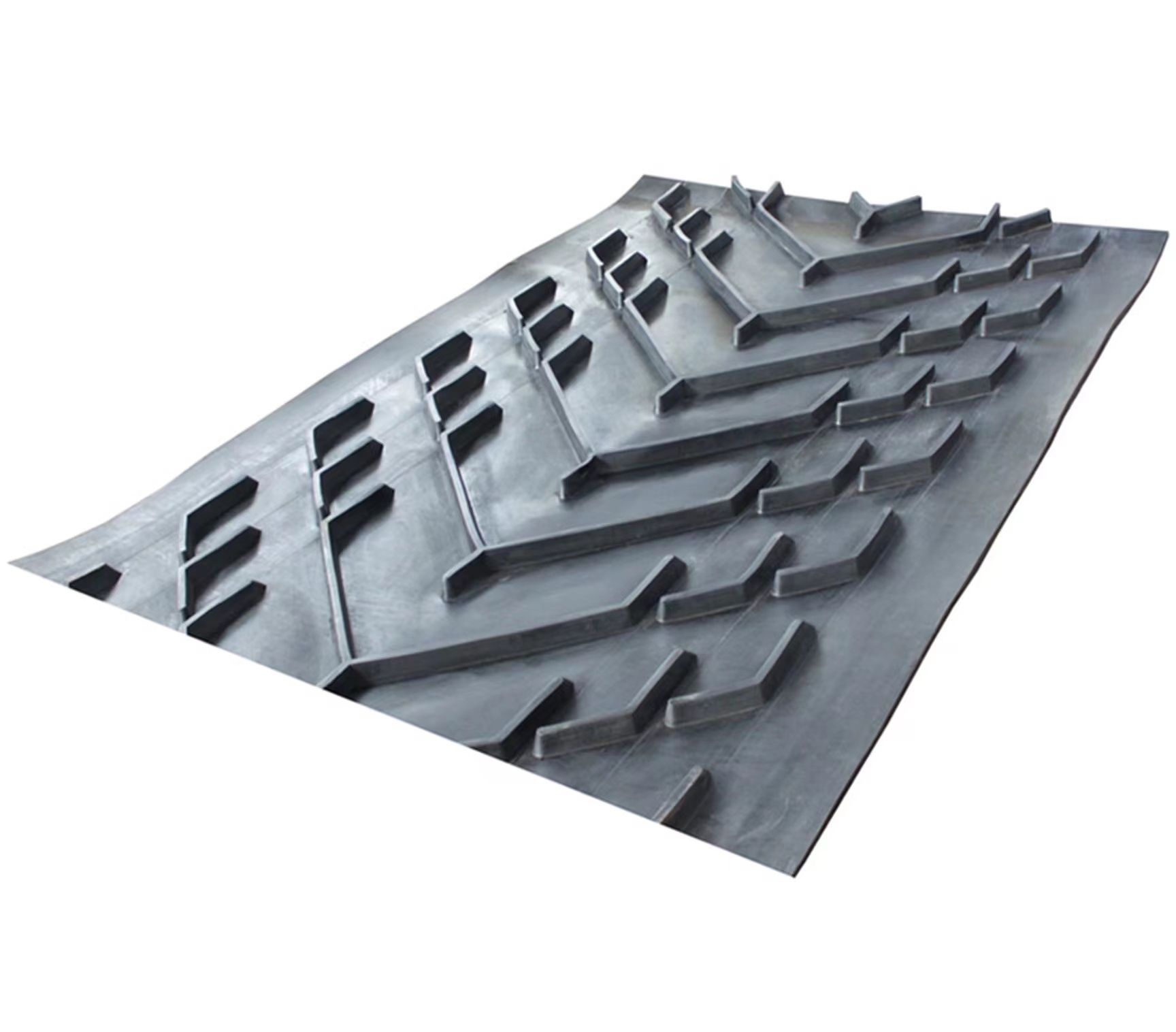

Uyang Belting Heavy Duty Chevron Rubber Conveyor belt

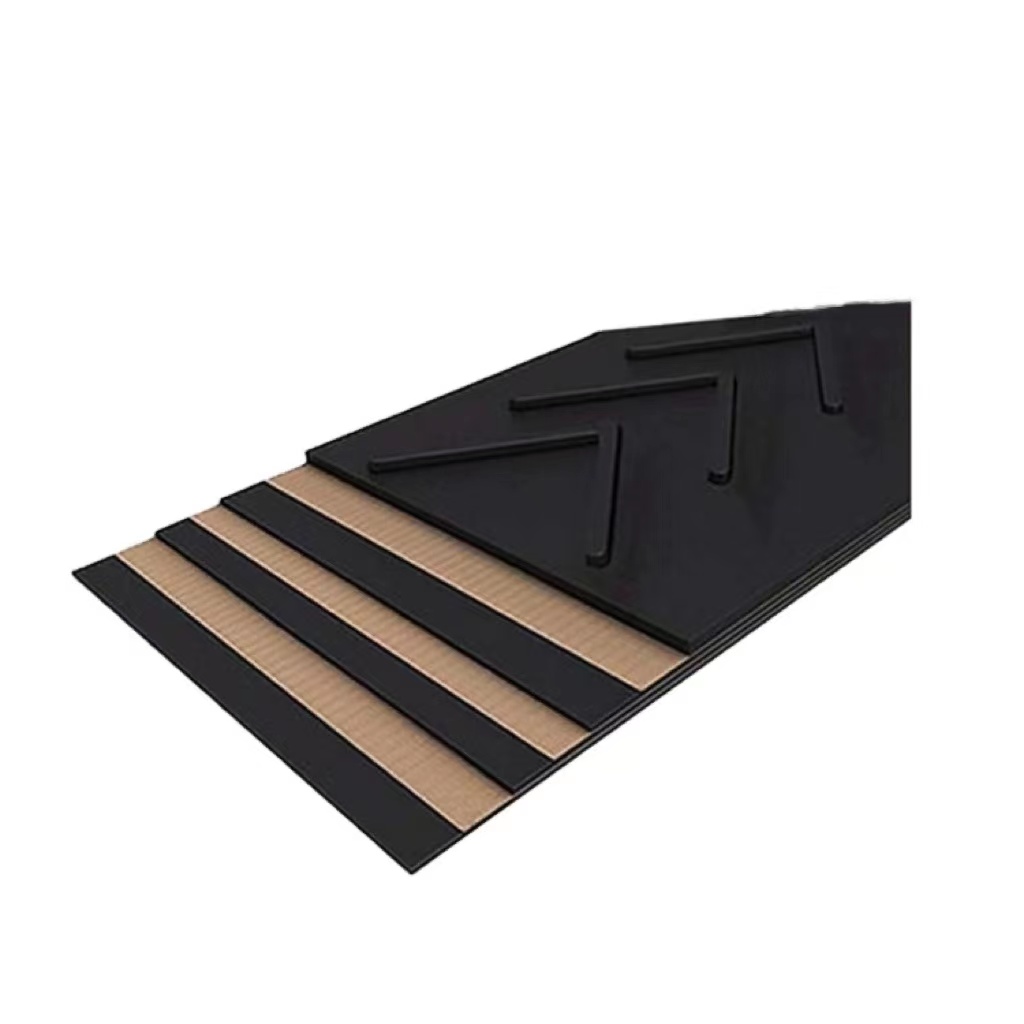

Type	EP belting
Textile Type	EP 100--- EP 500
Features	It can be applied in transporting bags, bulks materials in slope ranking from 0-40 degree. It also improves freight capacity preventing sliding
Standards of Performance	GB/T7984-2001

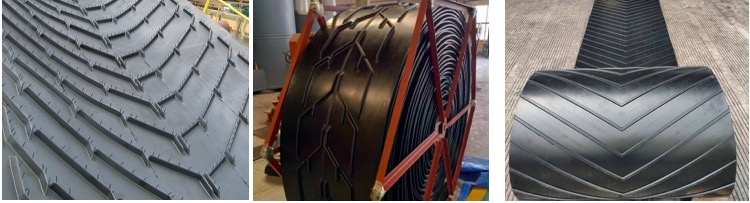

Format	Chevron shape, cleat shape, U shape, herringbone shape, cylinder shape etc.
Width of belt	300-2000mm
Height of pattern	5、10、15、20、25、30mm
Distance between patterns	125、200、250、330、400、500mm
Marks	Patterns can be designed under customization.

Product characteristics

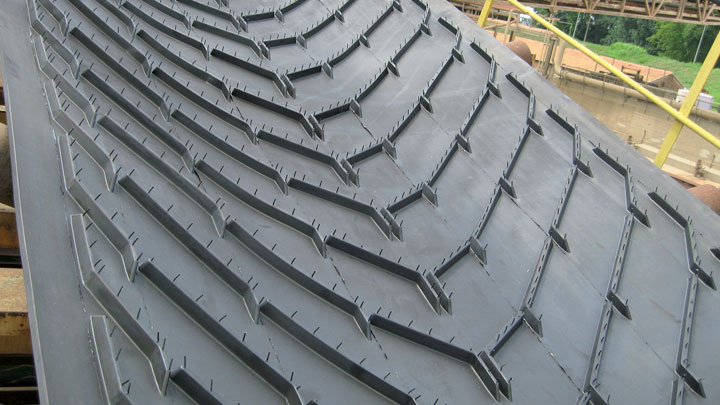

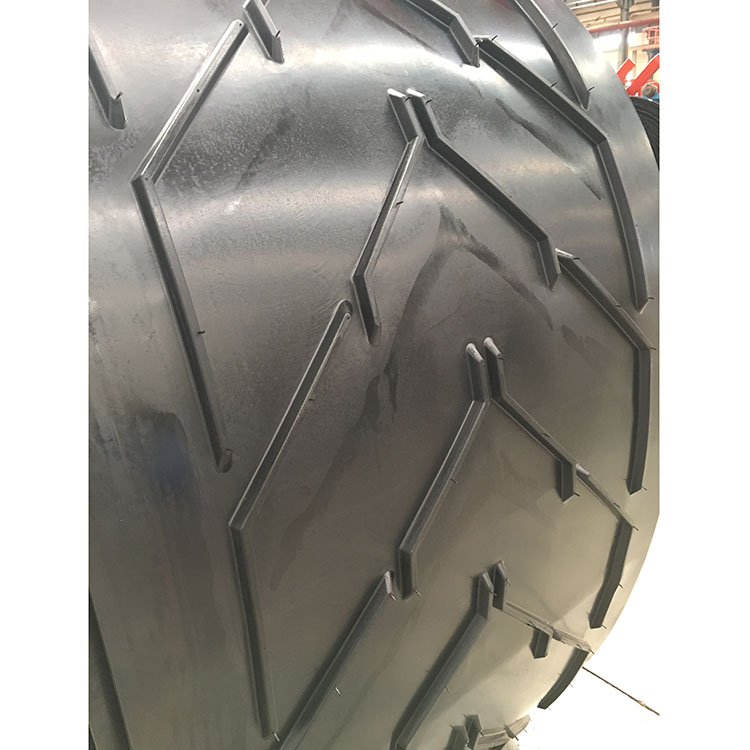

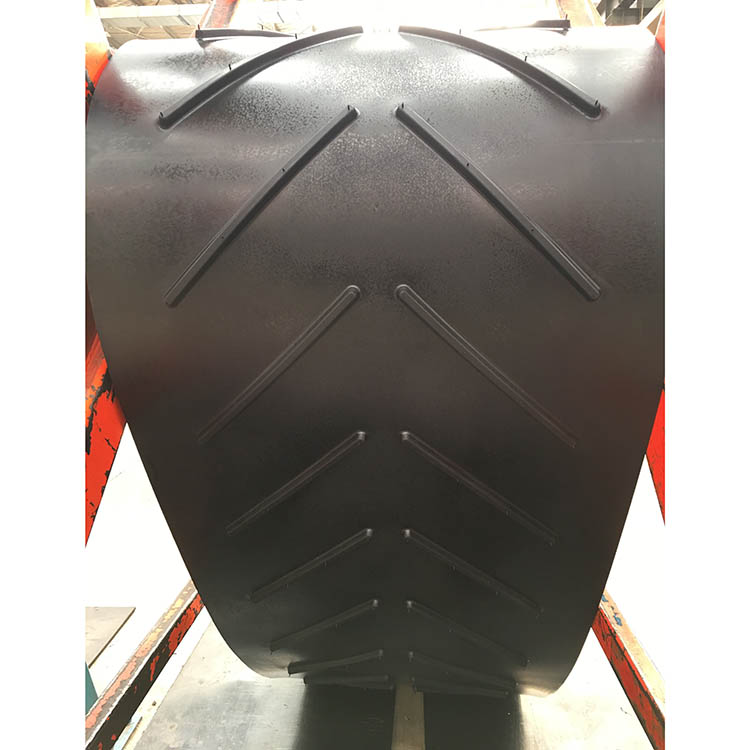

Uyang Belting Heavy Duty Chevron Rubber Conveyor belt

Chevron Conveyor Belts offered are precision designed and developed for providing desired space-saving on steep inclines which can go up to 40 Degrees. In such situations, these conveyor belts are designed to deliver enhanced load carrying capacity in bulk with lump size of up to 150mm.

Features:
Some of the standard features of these conveyor belts include:
 * For meeting the demands of high capacity conveying at steep angles
 * Designed to prevent load slippage or roll back of products while conveying
 * Comes with cleats that are integrally molded with top cover rubber that prevents separation from belt
 * Cleats also helping in achieving high abrasion resistance as well as elastic rubber compounds for desired flexibility
 * Can be offered in different cleat heights as well as widths depending on application requirements
 * Can be made available in varied finish design specifications
 * Following precision design standards that ensure belt has smooth run on conventional return idlers, thus needing no conveyor modification
 * Belting support provided allowing smooth transition from conventional flat belt to Chevron Conveyor Belts
 * Can be manufactured in all cover grades including abrasion resistant M24, HR, OR, FR
 * Available in white finish that helps in maintaining better hygiene standards

Application Areas:

Some of the areas of application include for meeting the transportation demands of:

Wood Chips	Sand & Gravel
Heavy Duty Scrap metal	Minerals - Coal & Ore
Materials - Fine Coal & Grains	Waste & Recycling Plants
Road Construction	Crushing Industries
Bagged Materials	Steel Pellets

High Quality Wholesale Custom Heavy Duty Chevron Rubber Conveyor belt

Rubber Conveyor Belt Main application and feature
It can be extensively used for the conveyance of materials in the mining, port, cement, metallurgical and chemical industries.
Standards of Performance：GB/T7984-2001
1. Cotton canvas conveyor belt: A traditional conveyor belt for short distance conveyance.
2. Nylon conveyor belt: Featured in good flexibility, high tension, impact & torsion resistance, less extension and easy trough-making. It is applicable to conveyance of middle-long distance, high speed and more loading capacity. Nylon 6-layers and 66-layers canvas core have almost equivalent tension, nevertheless Nylon-66 has better stability in heat situation.
3. Polyester conveyor belt: High initial modules, good dimensional stability, impact resistance, suitable for middle-long distance, high speed & heavy duty conveyance.
The different widths, patterns, colors, plies, thicknesss, profiles all are available according to your request.

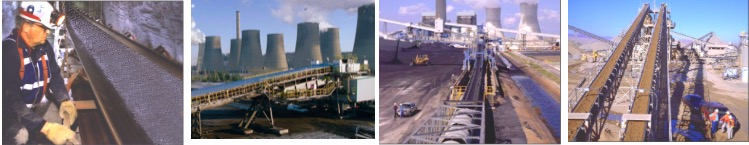

Application

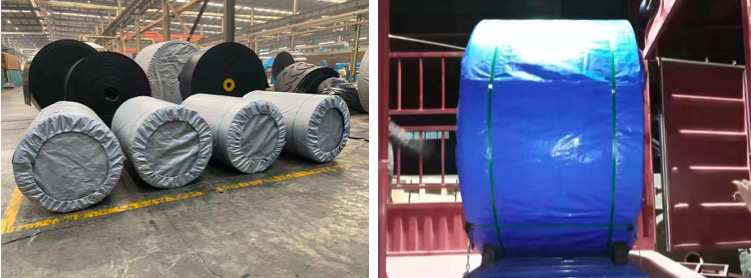

Product packaging
