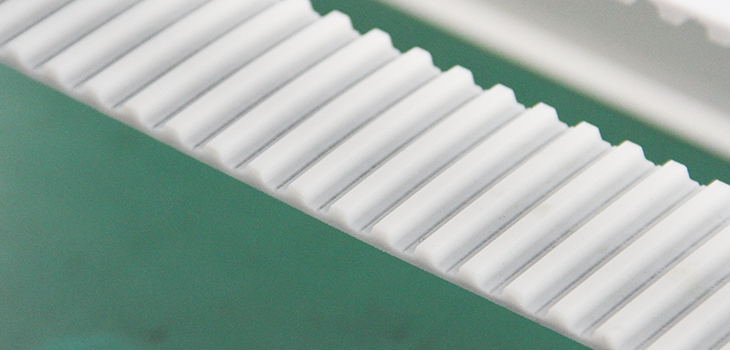

- Uyang Belting Open Ended Synchronous Belt PU Timing Belt with steel core

  Name:
  HTD 3M Open Ended Synchronous Belt PU Timing Belt with steel core
  Type
  HTD 3M
  Pitch
  3mm
  Height
  2.2mm
  Thickness
  1.3mm
  Rated load of opening belts(50mm/N)
  1560
Product characteristics

HTD 3M 5M 8M 14M 20M Open Ended Synchronous Belt PU Timing Belt with steel core
HTD curvilinear tooth profile improves load distribution and shear resistance, resulting in higher torque and power transmission capabilities.With a wide speed range and increased load carrying capacity, the HTD belt helps to provide constant driven speeds delivered by a smooth, compact drive design. These belts offer high operating efficiency with no need for lubrication along with reduced maintenance of constant lengths and belt tensioning.
HTD Timing Belts are a lighter, more efficient alternative to chain. When installed correctly, Timing Belts require no tensioning.
The HTD tooth profile results in a high strength power transmission that is suited for the high demanding loads of Robots.
The HTD Belts have fiberglass tensile cord for superior strength, longevity and resistance to elongation.
The HTD Belts come in a variety of sizes and widths to fit even the strictest design requirements.
There 's rubber and PU material for HTD belt.
Type: HTD 3M , 5M, 8M, 14M, 20M
Synchronous belt Series
Synchronous belt Series

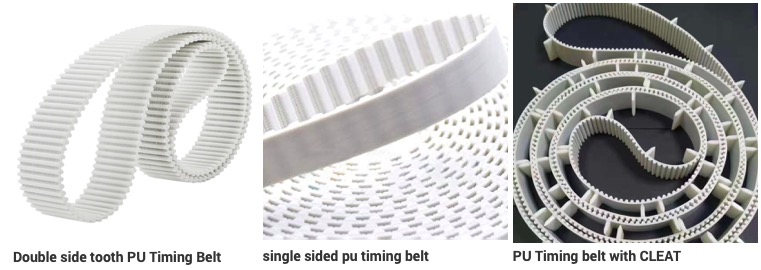

Our PU timing belts have been manufactured out of high quality thermoplastic Polyurethane which guarantees smooth running and a very good abrasion resistance.
PU timing belts are available with all different types of cords, coatings and/or cams.

Features of using UYANG BELTING Timing Belts: 1. Exact positioning
2. Abrasion-resistant
3. Good chemical durability/resistance
4. High flexibility
5. Low noise level
6.Applicable for high speeds

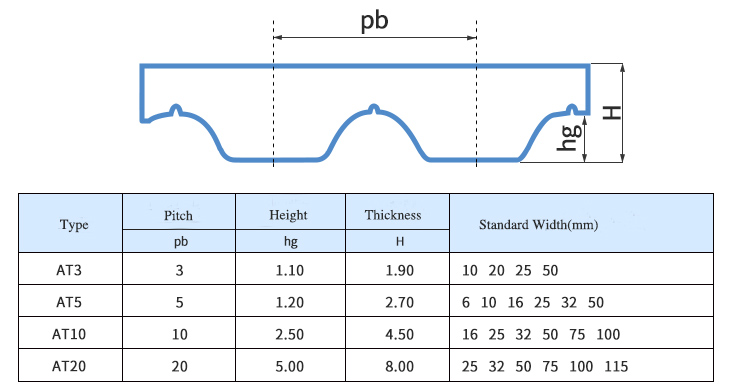

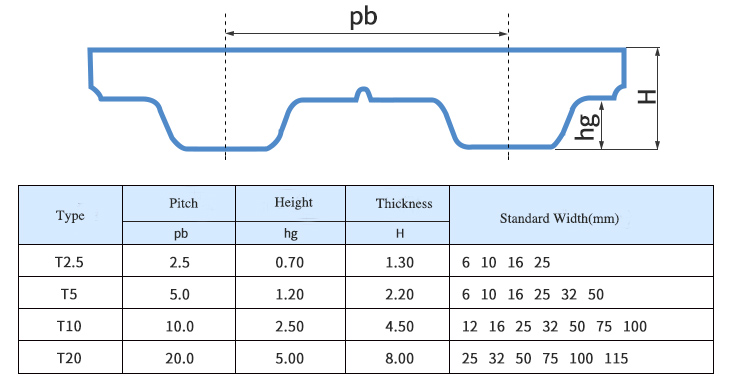

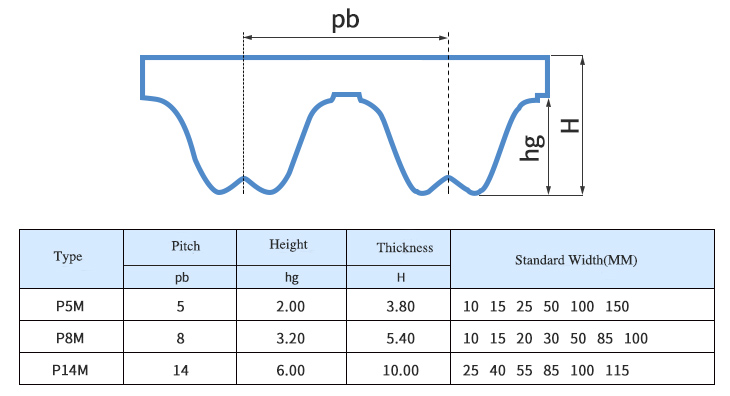

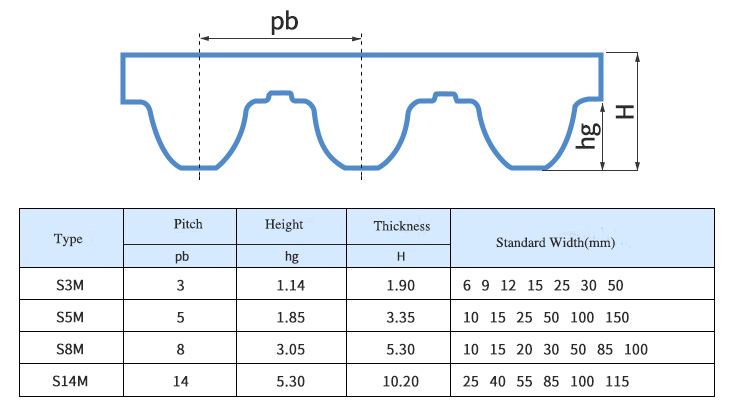

Available tooth types
Metric types: T, TK, DT, WT, GMT, AT, ATK, ATG, ATL, ATN, ATP, HTD, STD, MTD, RPP, BAT, SFAT, Eagle, F;
Inch types: MXL, XL, L, H, XH, XXH

Variety in cords:
1. Steel cords
2. Reinforced steel cords
3. Extra flexible steel cords
4. Stainless steel cords
5. Kevlar cords

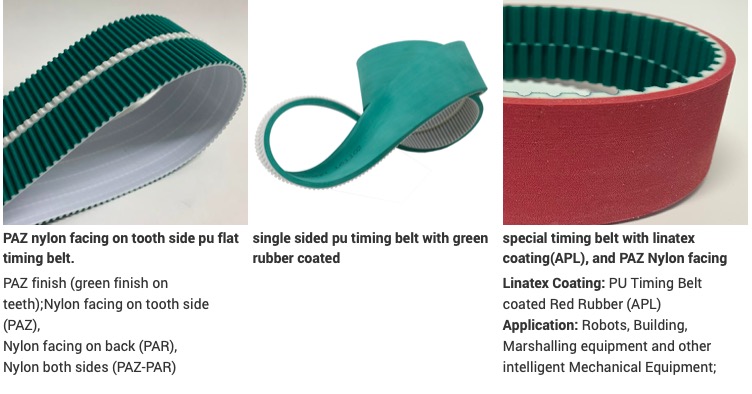

To lower sliding resistance:
1. Nylon fabric on tooth side (PAZ)
2. Nylon fabric on backside (PAR)
3. Nylon fabric on tooth and backside (PAZ/PAR)

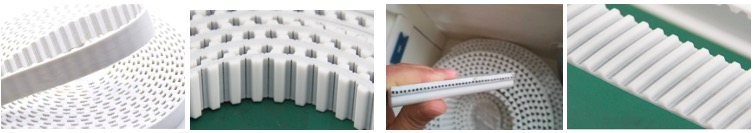

Special manufacturing processes:
1. Cams
2. Perforations
3. CNC milling and grinding
4. Vacuum chambers
5. Water jet

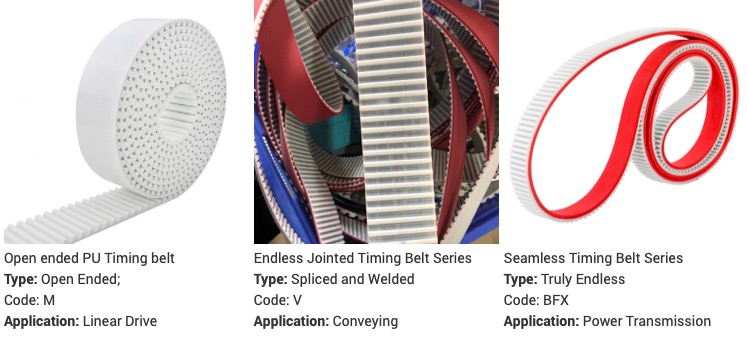

Jointing Type of belt
All our PU timing belts are available as per following version:
1. Open
2. Endless with a splice
3. Truly endless (Flex & molded)
4. Mechanical connection (PinJoin, Breco DC, plastic spiral)
Product Parameters

<< Previous page

Next page >>

Name:	HTD 3M Open Ended Synchronous Belt PU Timing Belt with steel core
Type	HTD 3M
Pitch	3mm
Height	2.2mm
Thickness	1.3mm
Rated load of opening belts(50mm/N)	1560
